Courtesy Lamp
>>
Ash Tray Lamp
Ash Tray Lamp

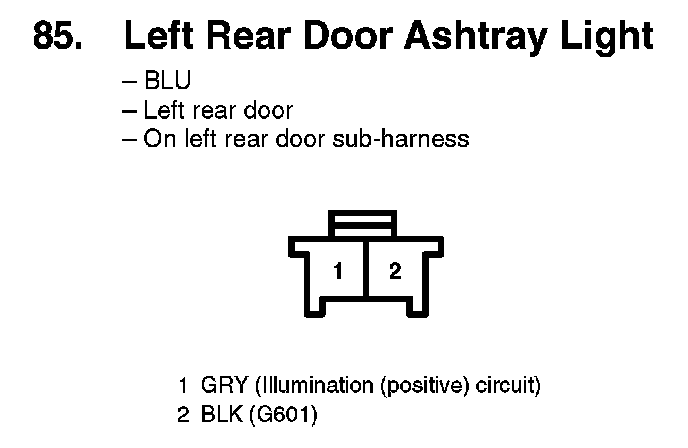

85. Left Rear Door Ashtray Light:
115. Right Rear Door Ashtray Light:
