Home >> Acura >> 2008 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 376-400 >> 380

View 376-400: 380

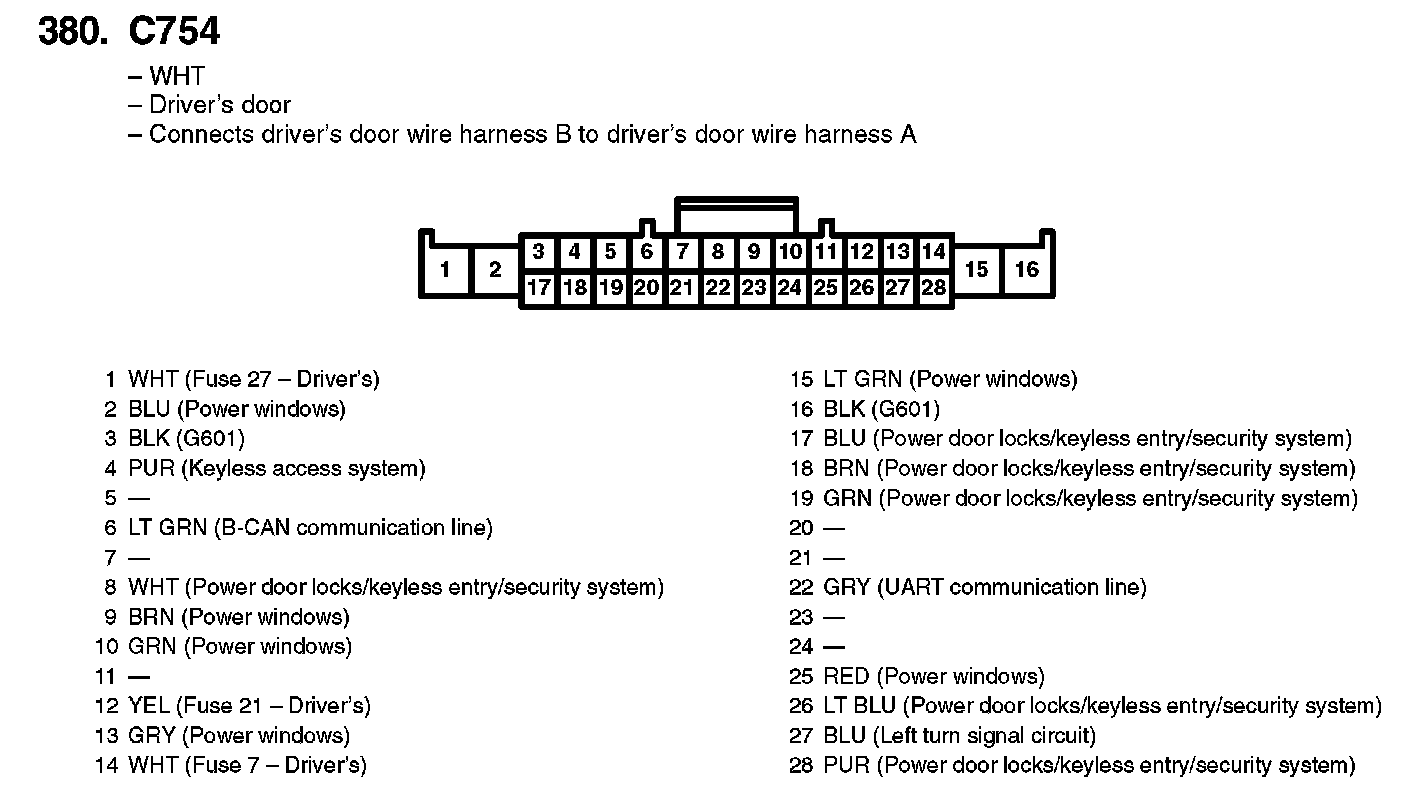

380. C754:
