Home >> Acura >> 2008 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 351-375 >> 357

View 351-375: 357

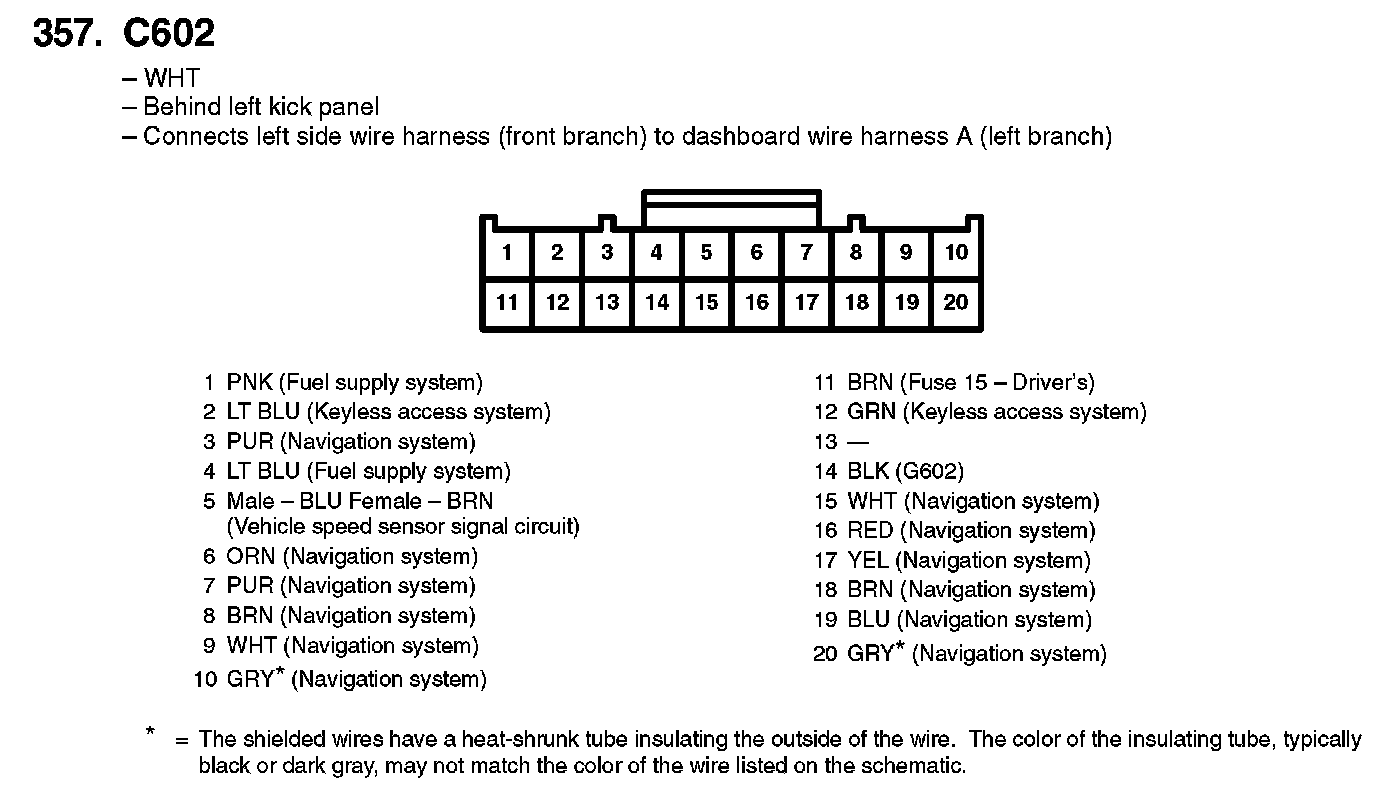

357. C602:
