Adaptive Cruise Control (ACC) Circuit Diagram
Adaptive Cruise Control (ACC) Circuit Diagram

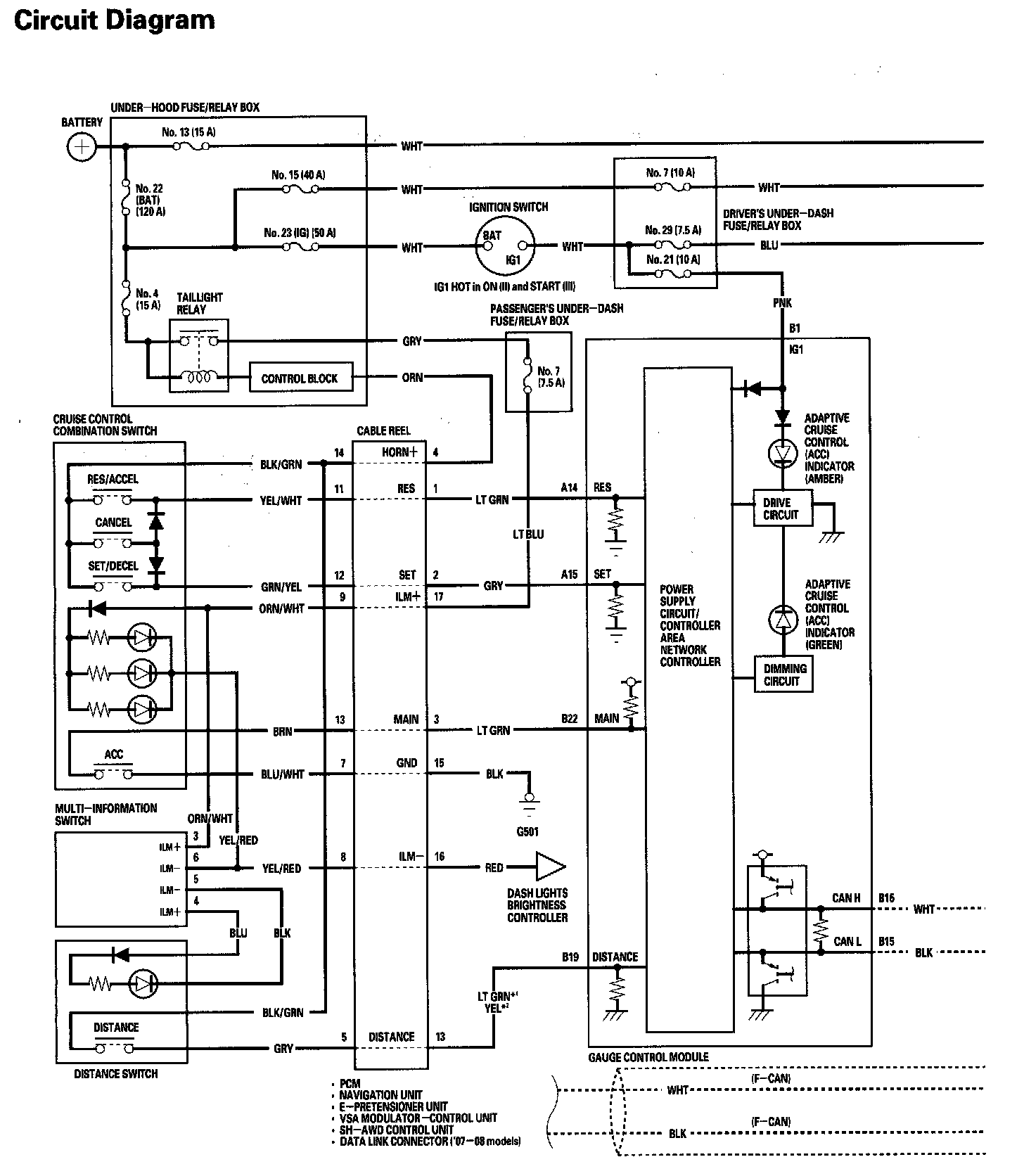

Adaptive Cruise Control (ACC) Circuit Diagram Part 1:
Adaptive Cruise Control (ACC) Circuit Diagram Part 2:
