Garage Door Opener Transmitter: Service and Repair

HomeLink Unit Replacement

1. Remove the roof console.

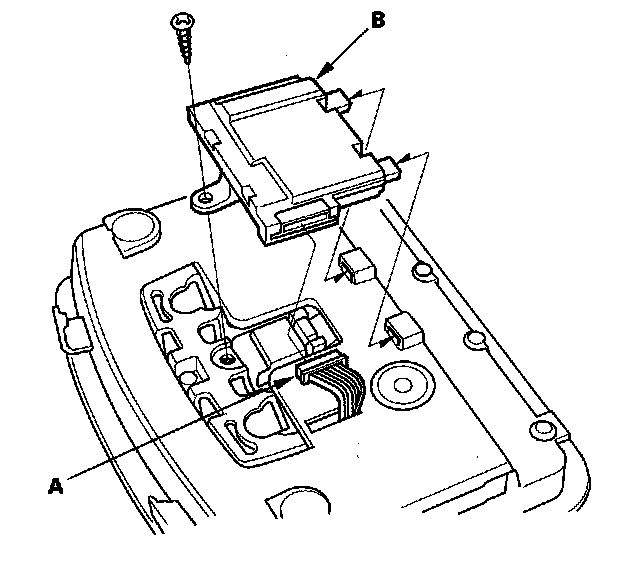

2. Disconnect the connector (A) from the HomeLink unit (B).






3. Remove the screw and HomeLink unit.
4. Install the unit in the reverse order of removal.
