Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Maintenance Data

Maintenance Data

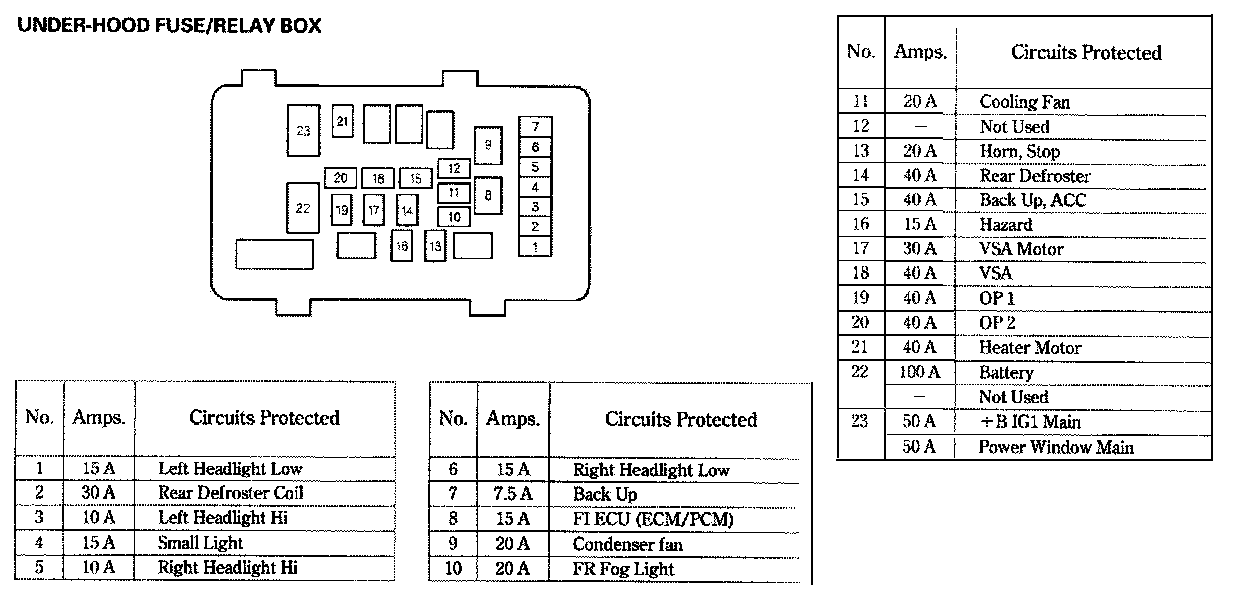

Under-Hood Fuse Box:

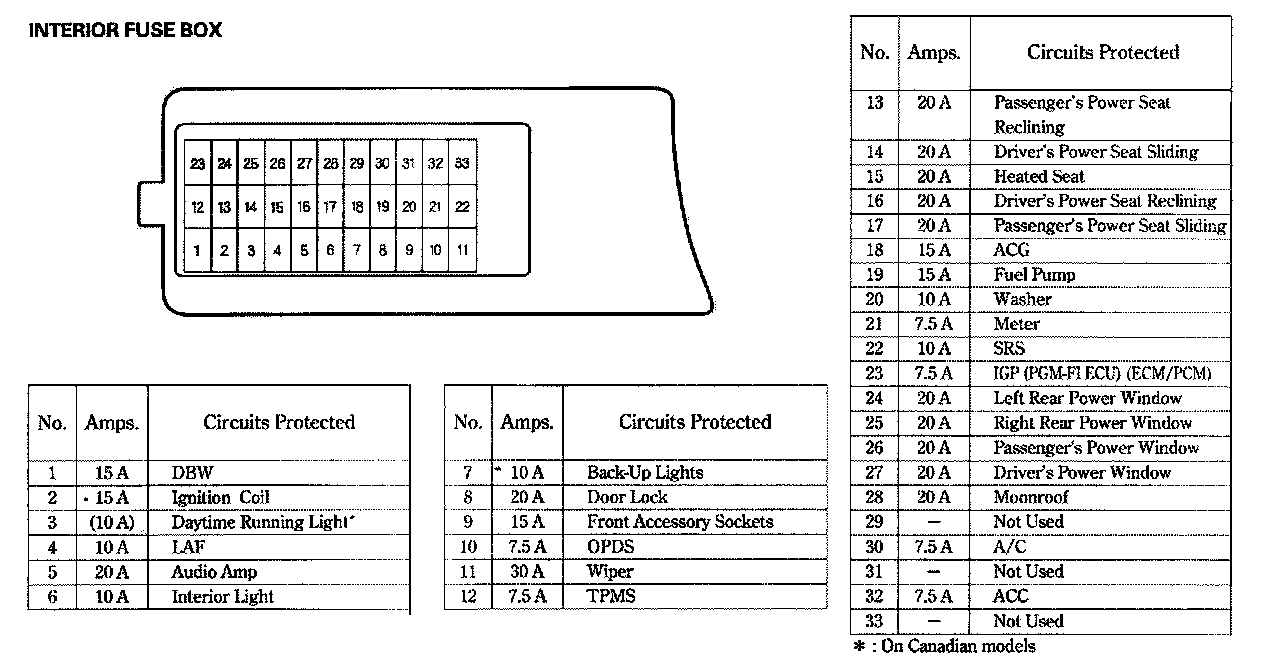

Interior Fuse Box:
