Garage Door Opener Transmitter
>>
Homelink Remote Control System
Homelink Remote Control System

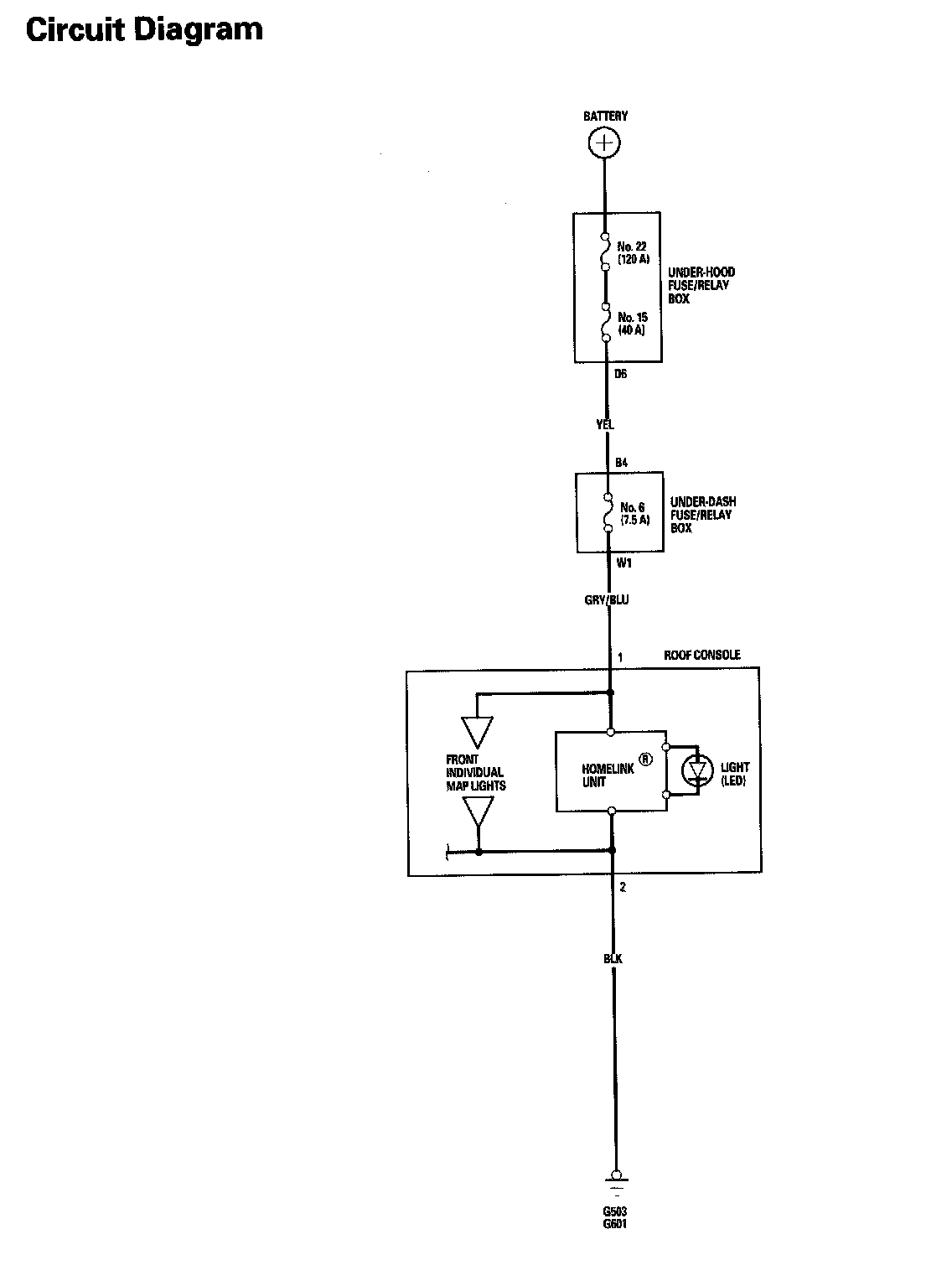

HomeLink Remote Control System Circuit Diagram:
