Seat Temperature Relay
Seat Temperature Relay

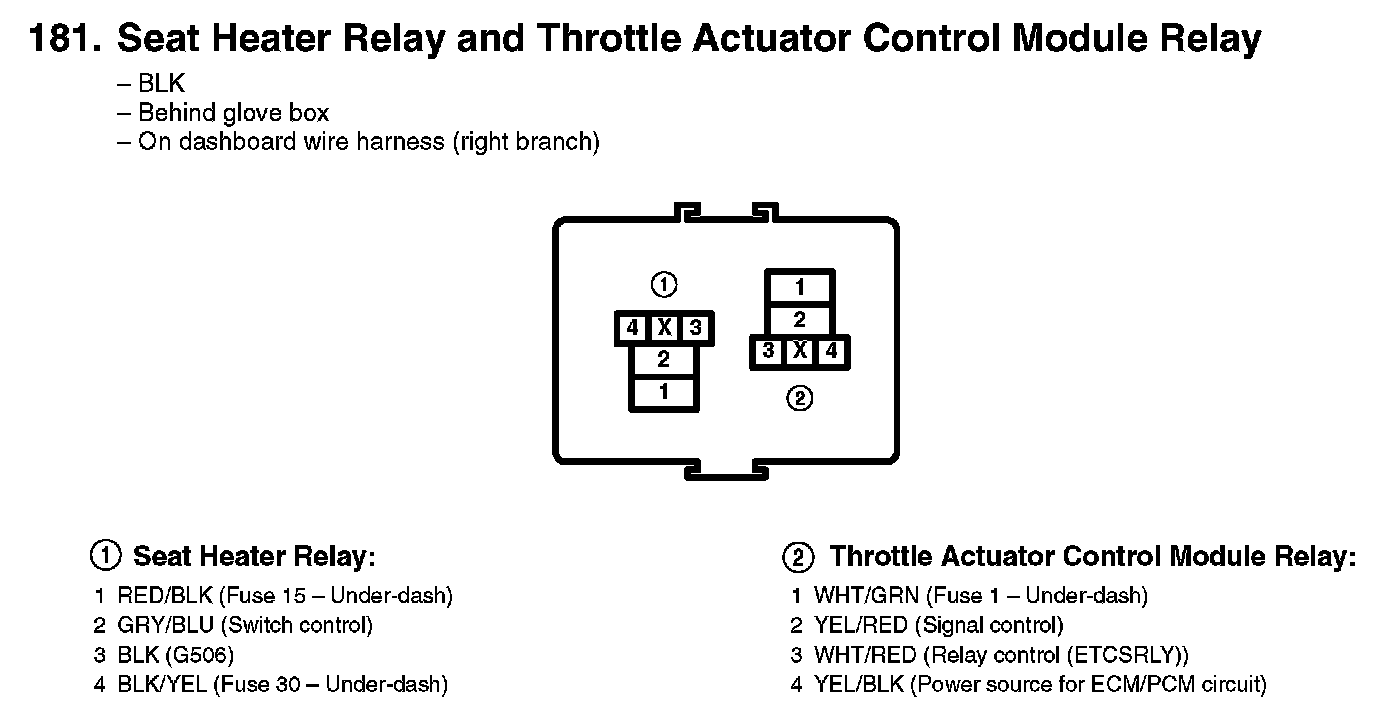

181. Seat Heater Relay And Throttle Actuator Control Module Relay:
