Home
>>
Acura
>>
2007
>>
RL V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Transfer Case
Transfer Case

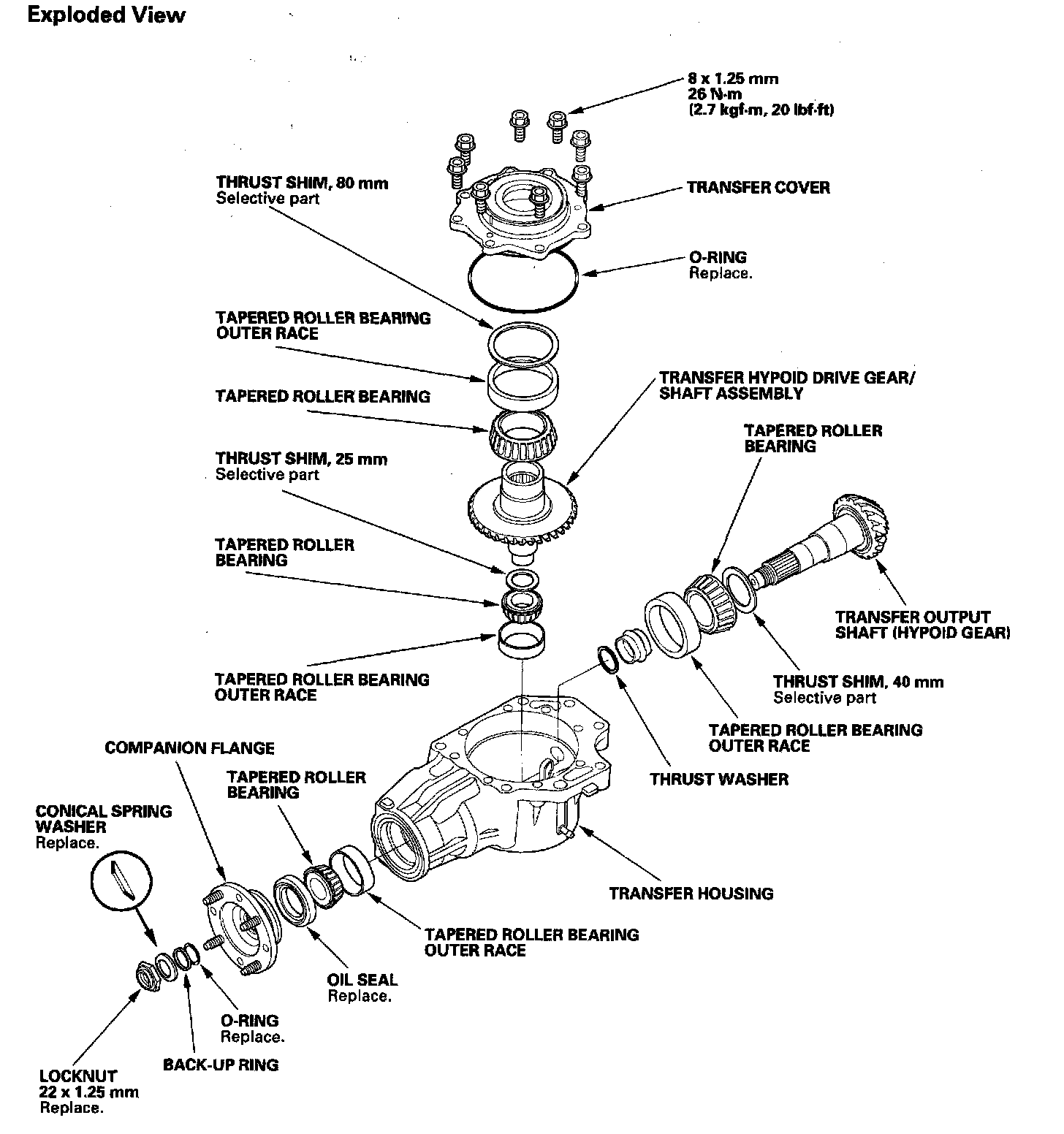

Exploded View
Transfer Assembly:
