Acura
>>
2006
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Exploded Views
>>

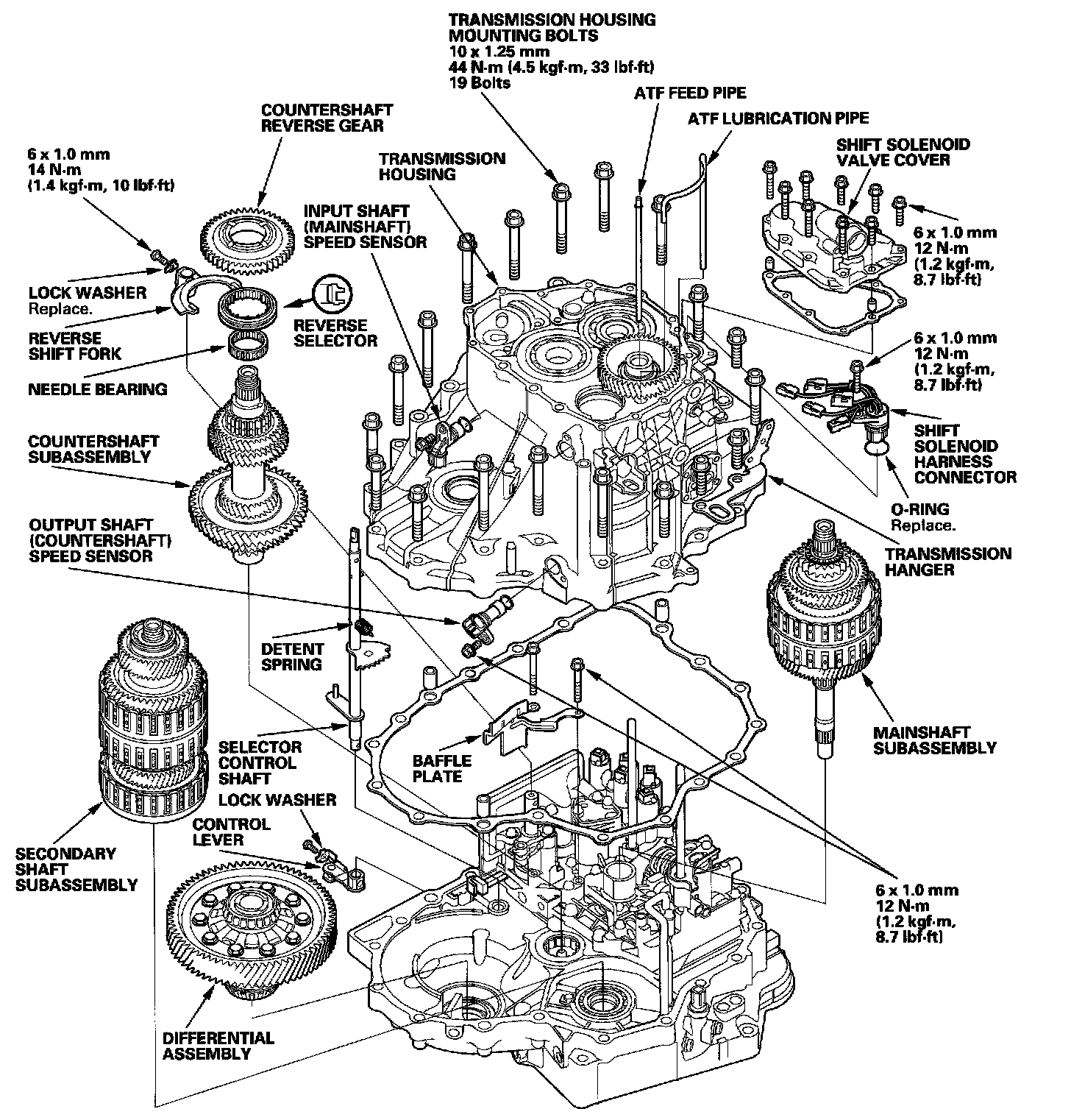

Shaft Assembly and Housing
Shaft Assembly and Housing
Shaft Assembly and Housing:
