Home >> Acura >> 2006 >> TSX L4-2.4L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Acceleration Sensor >> Diagrams

Acceleration Sensor: Diagrams

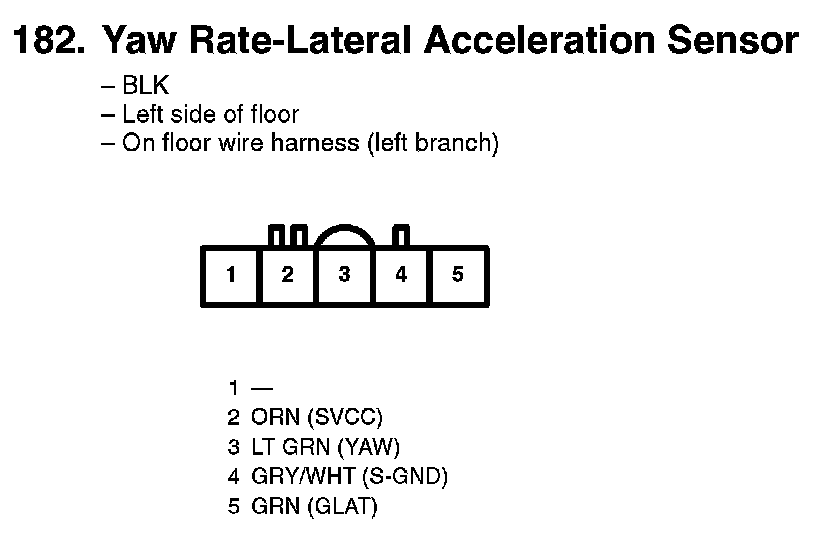

182. Yaw Rate-Lateral Acceleration Sensor:
