Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

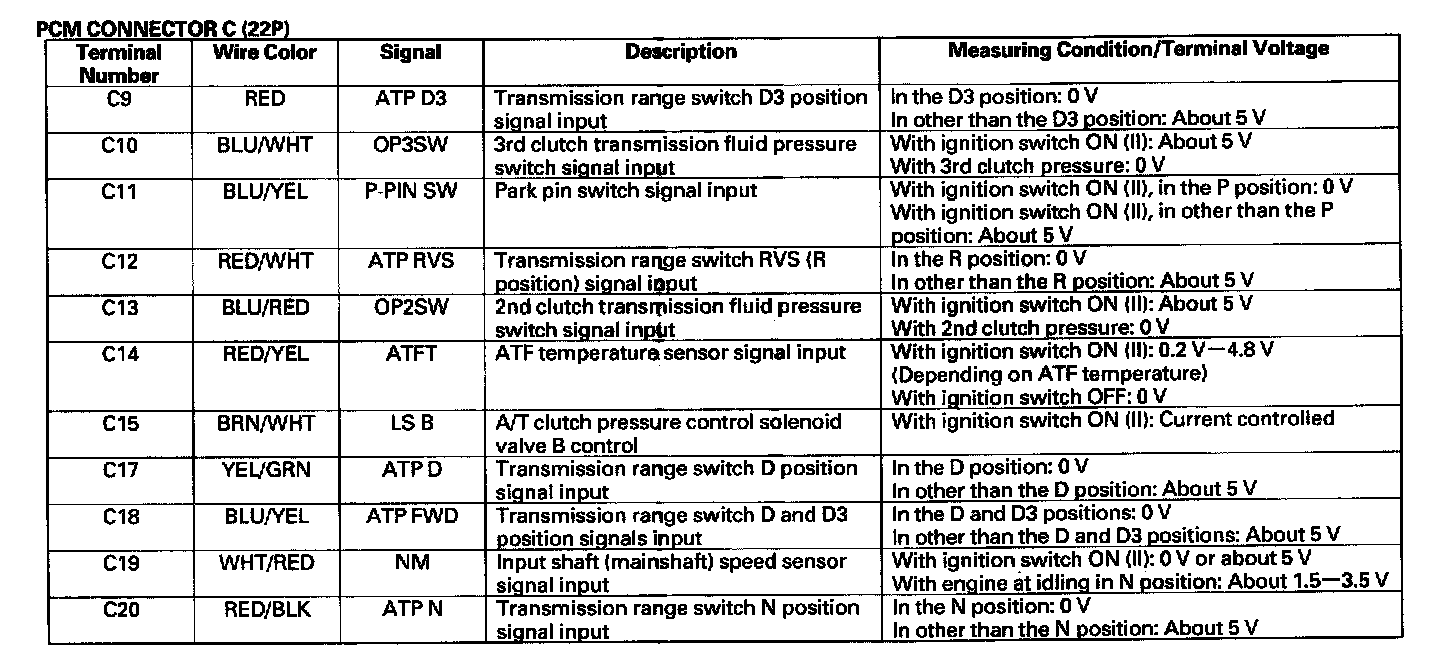

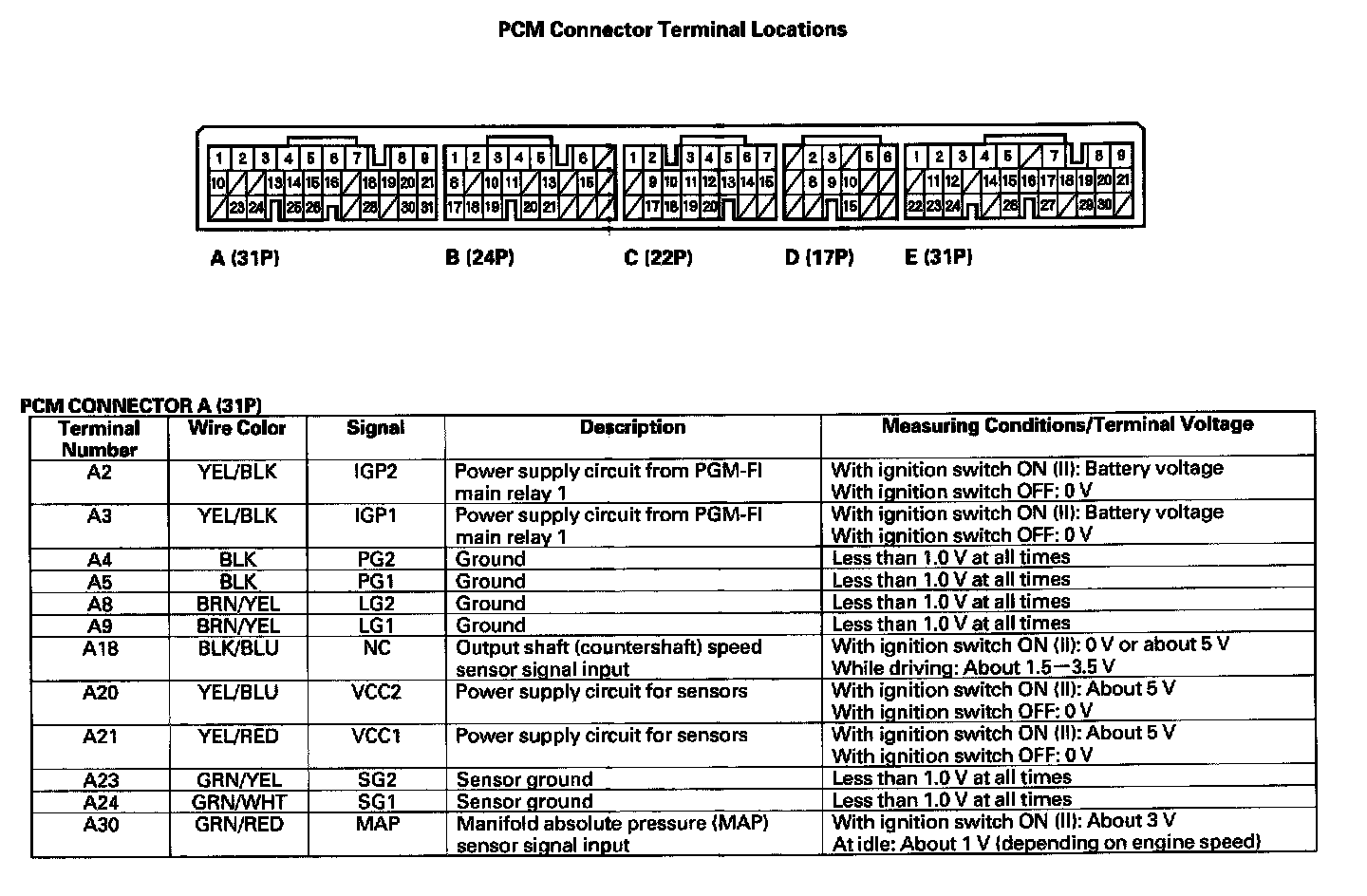

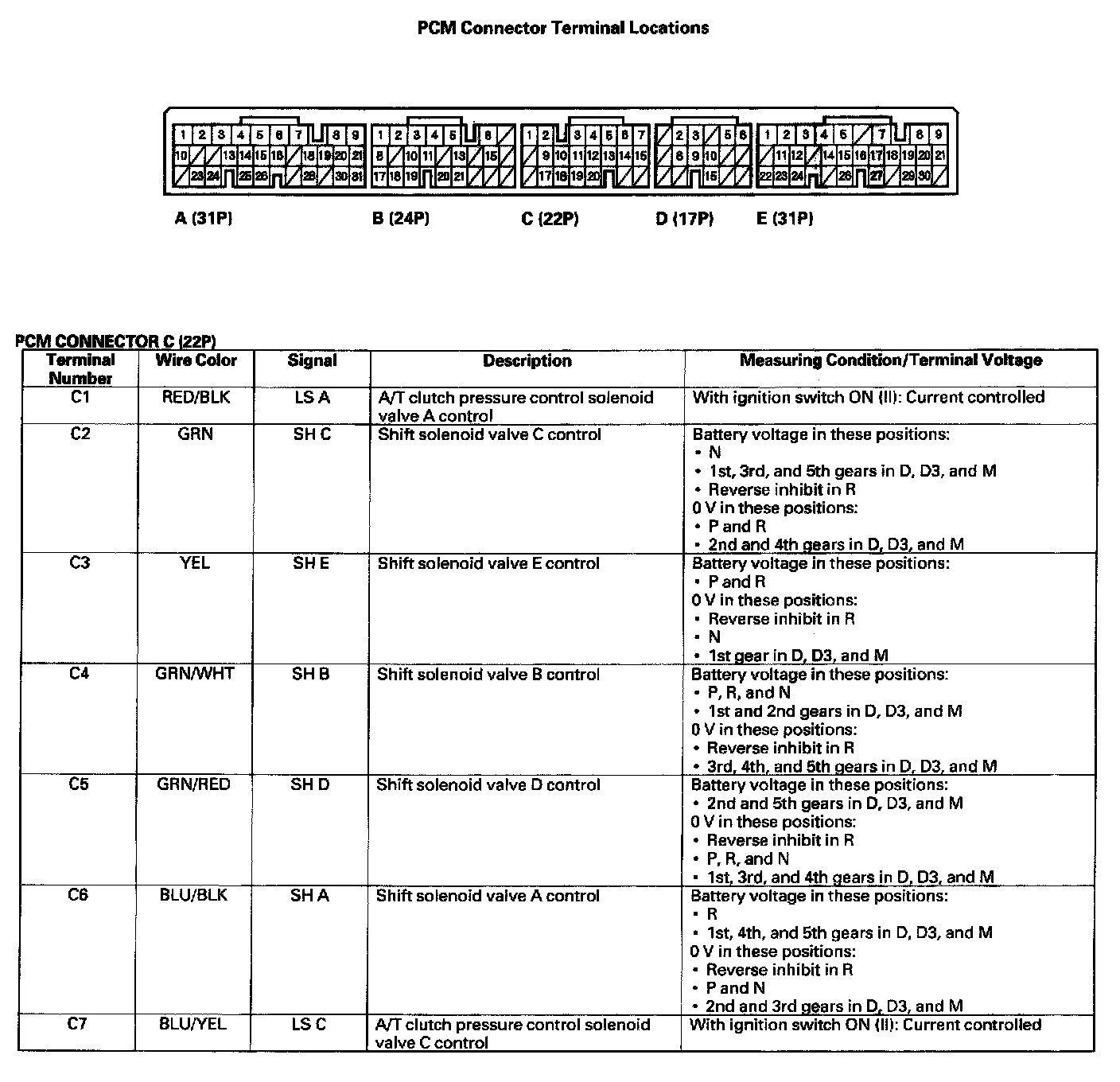

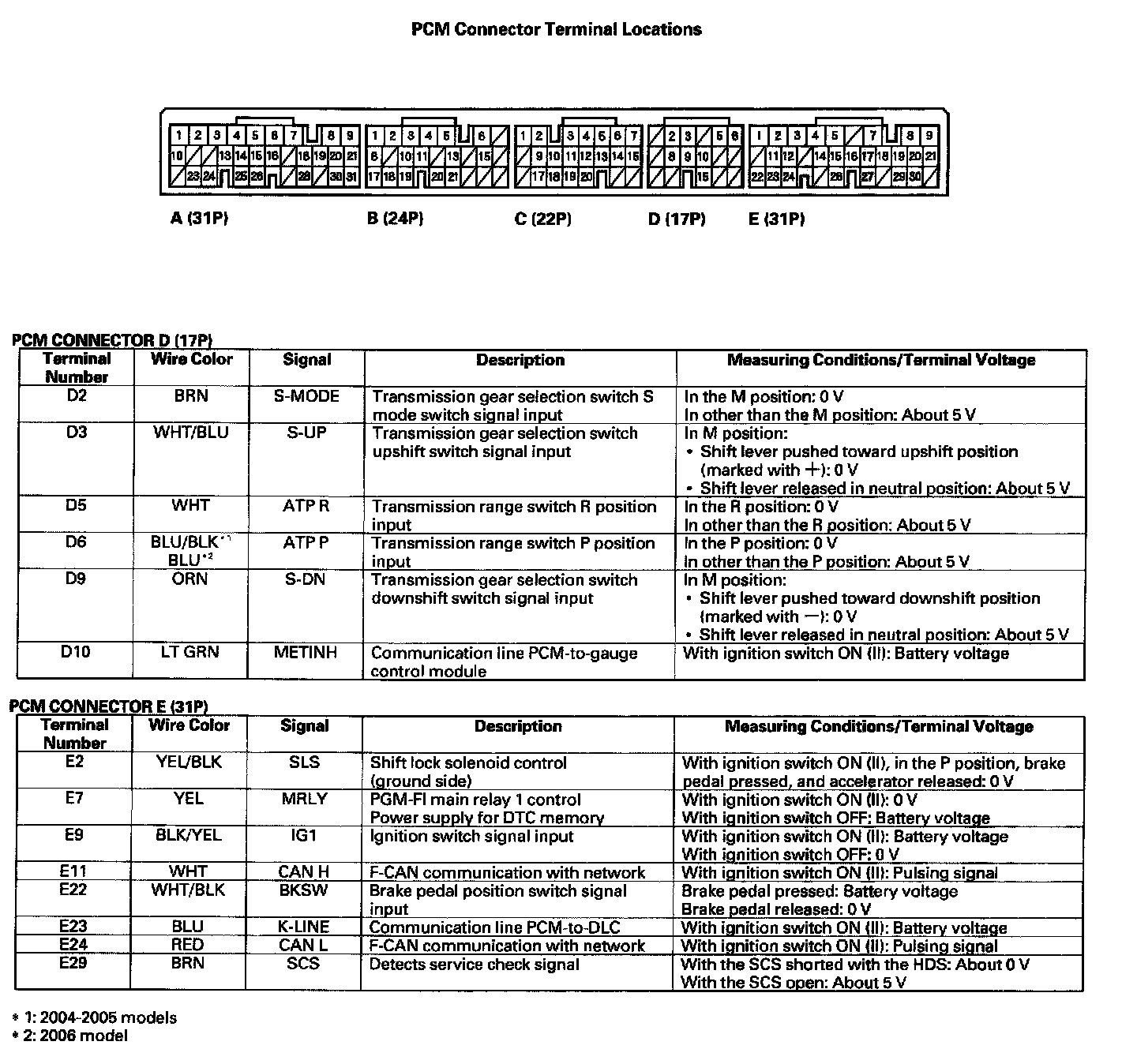

PCM Inputs and Outputs:
PCM Inputs and Outputs:
PCM Inputs and Outputs:
PCM Inputs and Outputs:
