Automatic Transmission
Automatic Transmission

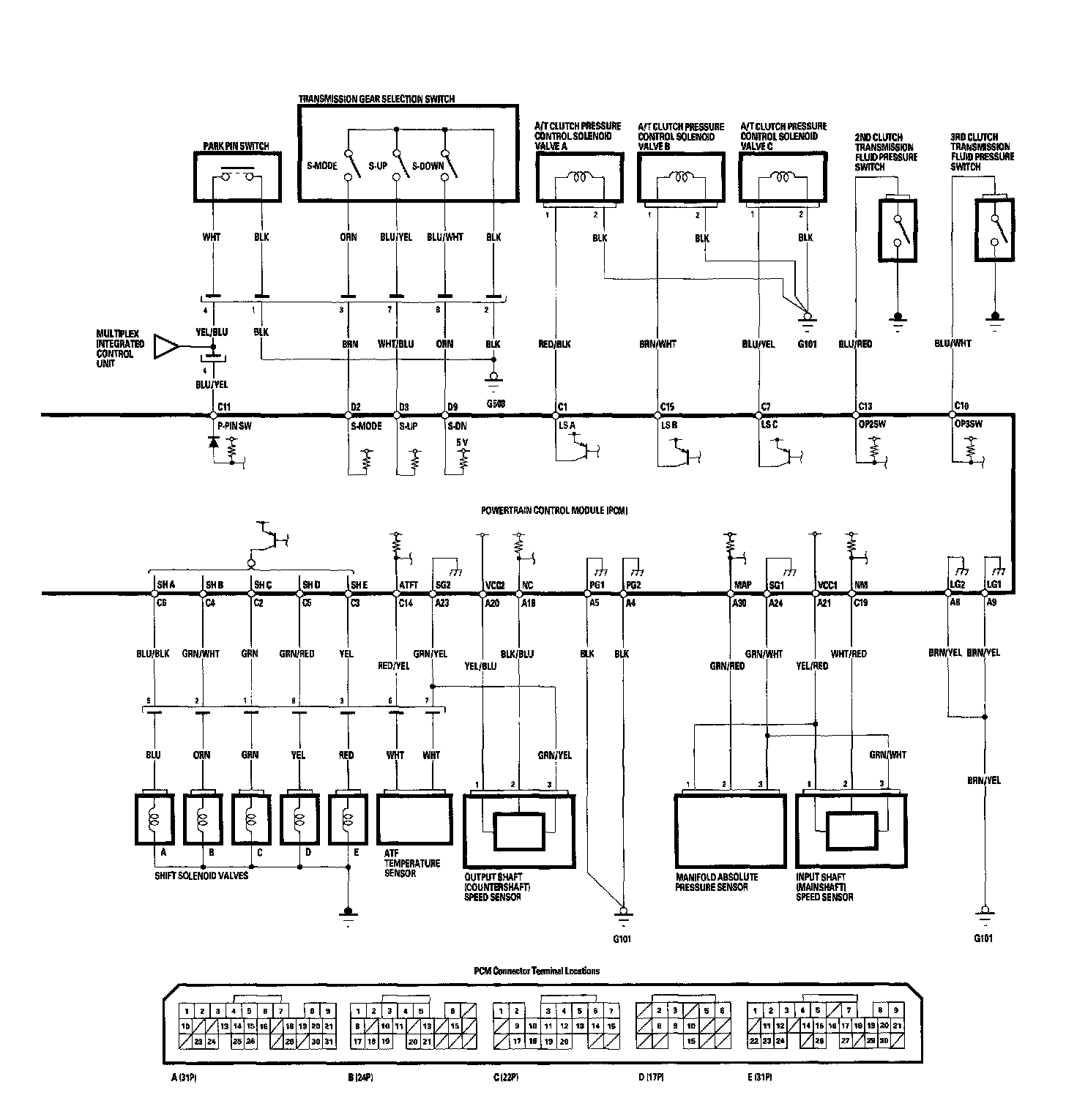

PCM A/T Control System Circuit Diagram (Part 1):
PCM A/T Control System Circuit Diagram (Part 2):
