Acura
>>
2006
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Brake Lamp
>>
Circuit Diagrams
Circuit Diagrams

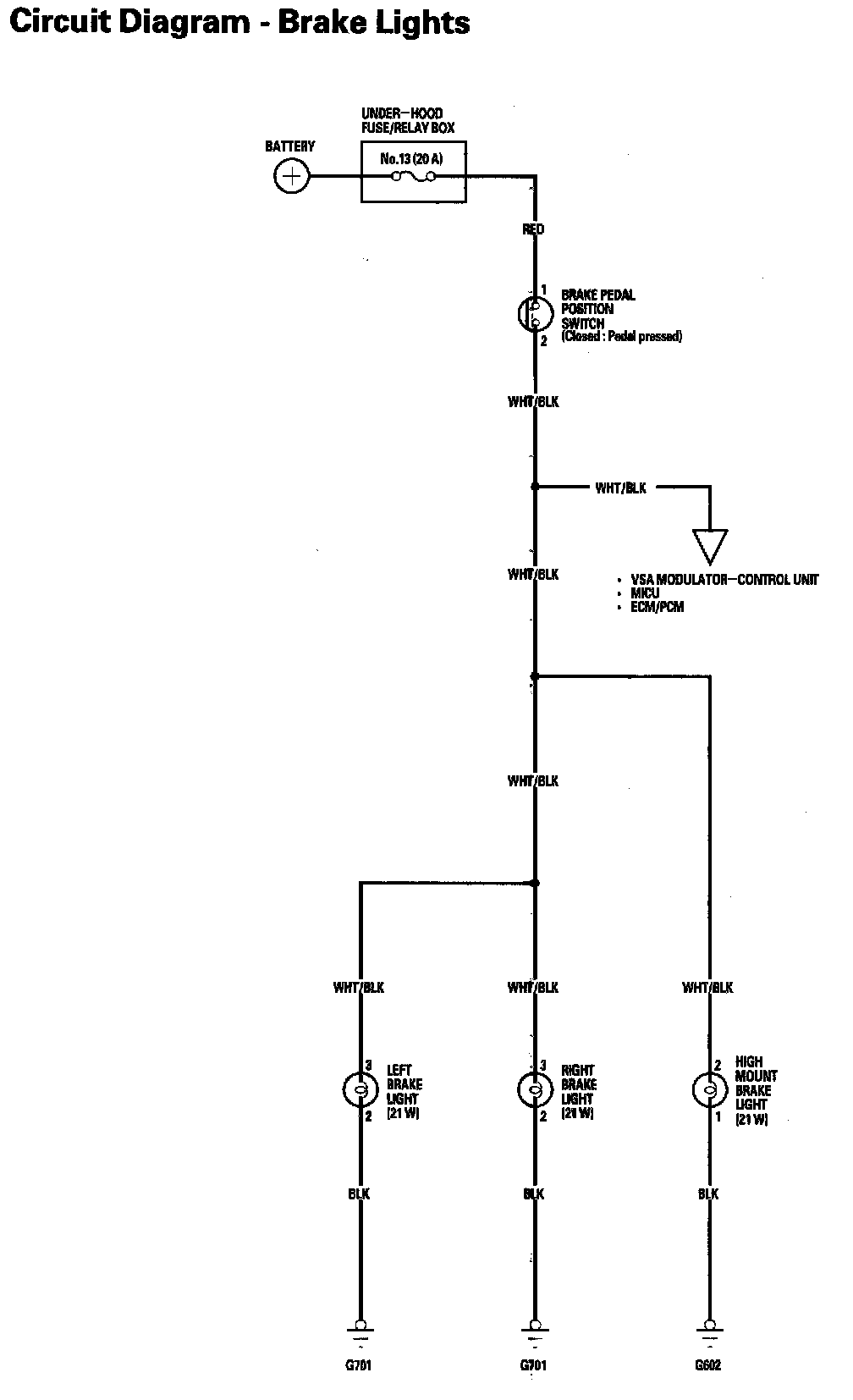

Brake Lights - Circuit Diagram:
