Seat Temperature Element
Seat Temperature Element

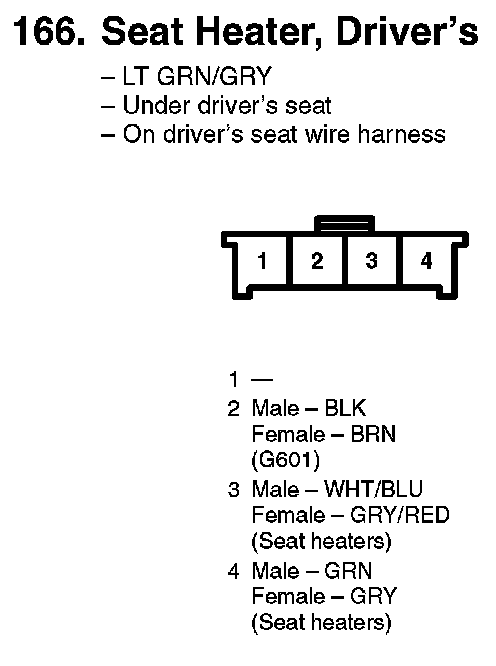

166. Seat Heater, Driver's:

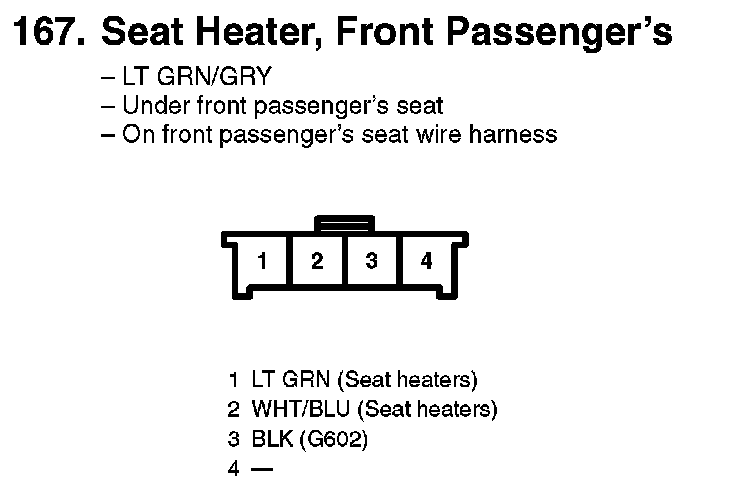

167. Seat Heater, Front Passenger's:
