Home >> Acura >> 2006 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 226-250 >> 243

View 226-250: 243

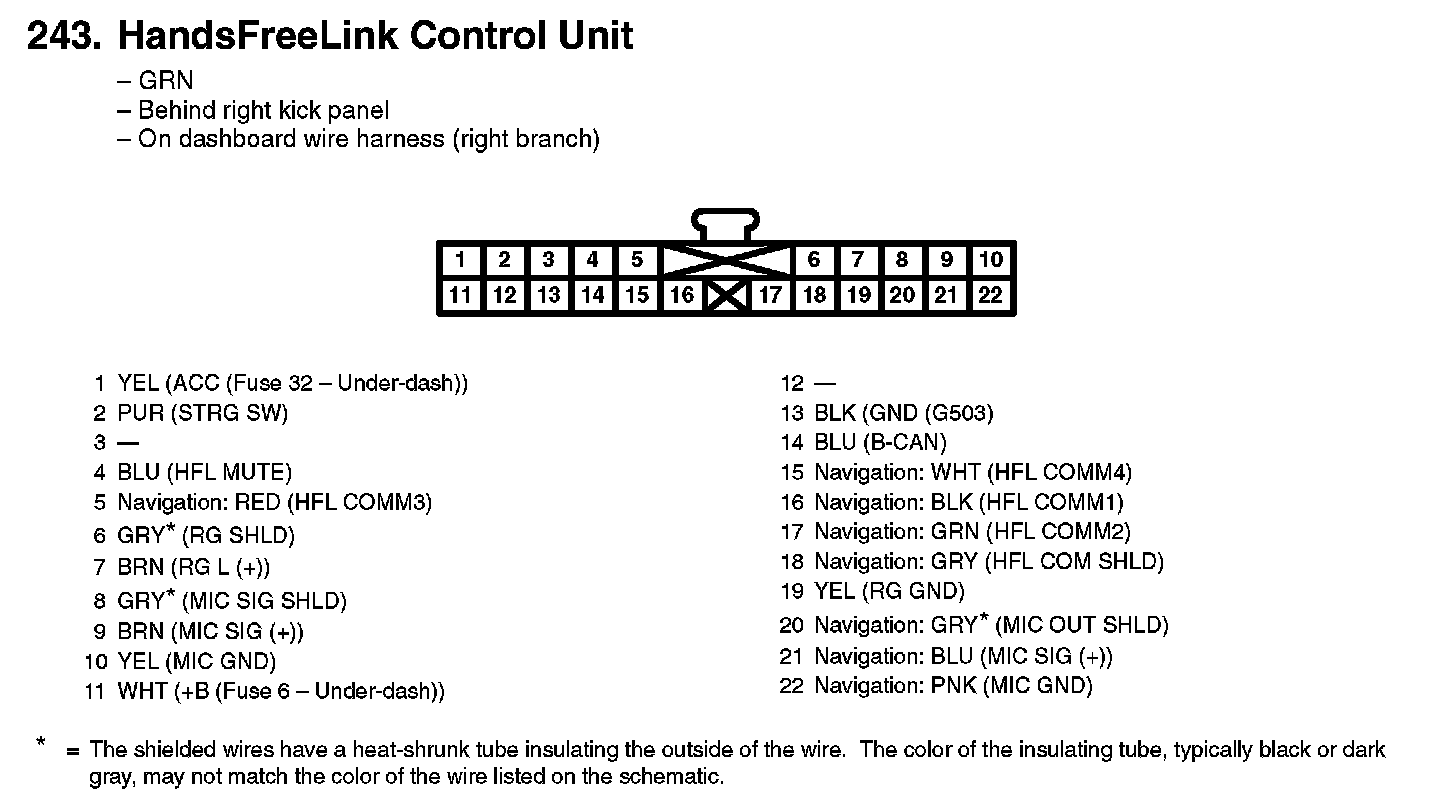

243. HandsFreeLink Control Unit:
