Home >> Acura >> 2006 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 201-225 >> 215

View 201-225: 215

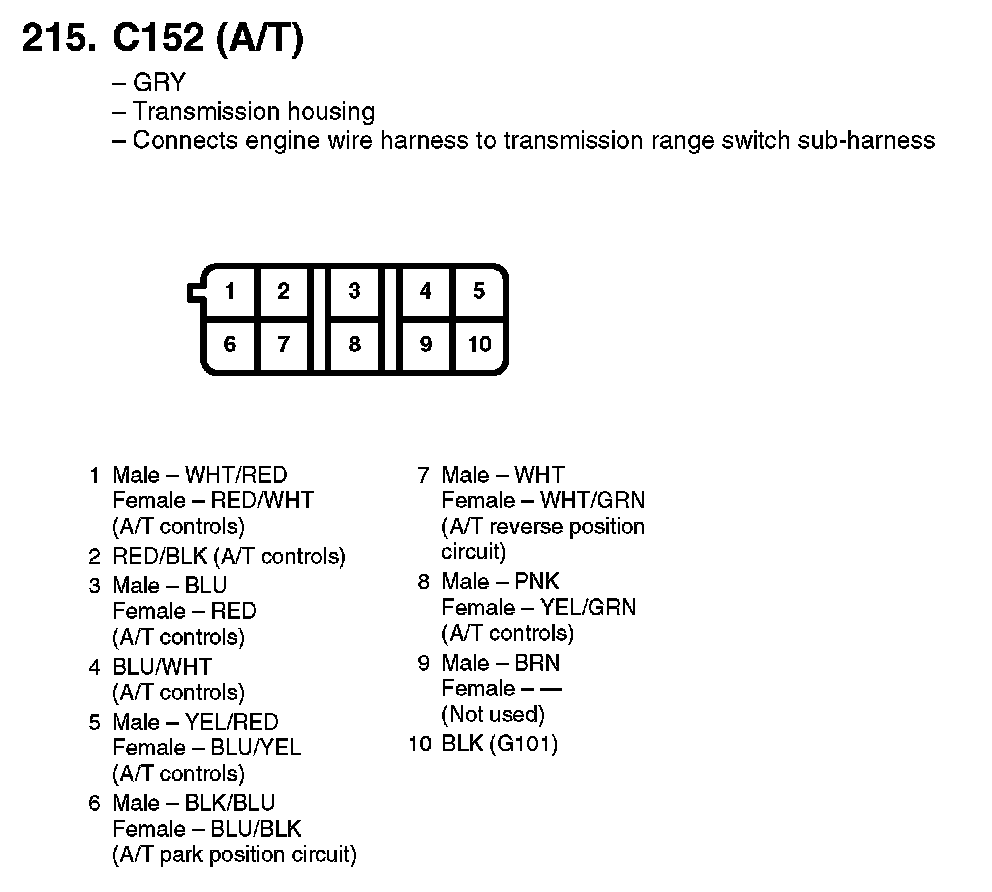

215. C152 (A/T):
