Home >> Acura >> 2006 >> TSX L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Mirror Switch >> Diagrams

Power Mirror Switch: Diagrams

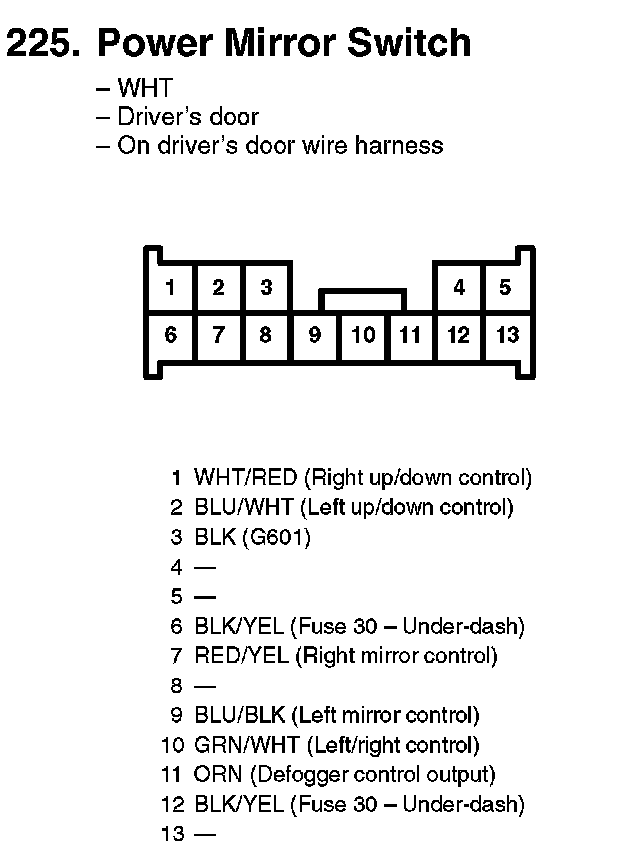

225. Power Mirror Switch:
