Antenna Amplifier: Service and Repair

Window Antenna Amplifier/Defogger Coil Replacement

1. Remove the left rear pillar trim.

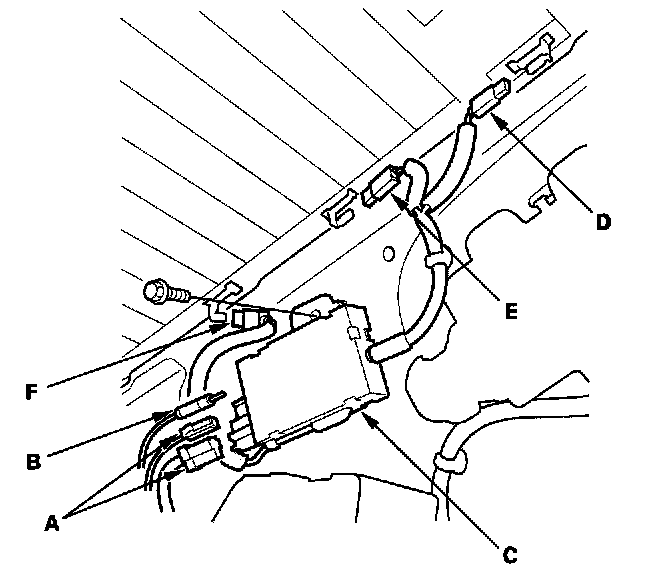

2. Disconnect the 1P connectors (A) and the antenna cable (B) from the window antenna coil (C).
3. Disconnect the AM (D), FM (E), and defogger (F) 1P connectors from the C-pillar.
4. Remove the bolt and the window antenna amplifier/defogger coil.
