Acura
>>
2006
>>
TL V6-3.2L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Connector Views
Connector Views
31. Back-up Light, Left:

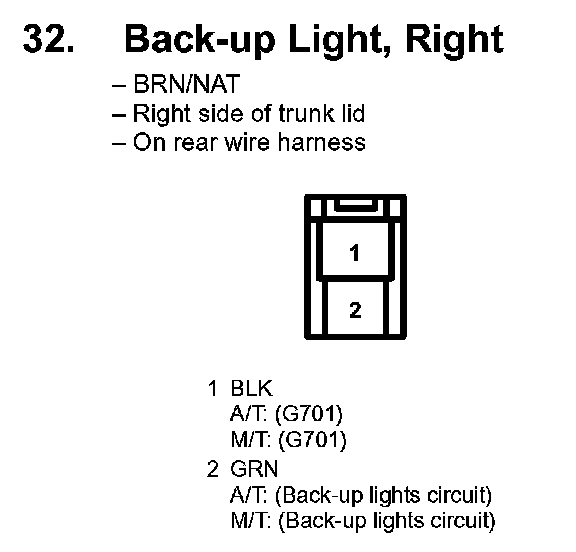

32. Back-up Light, Right:
