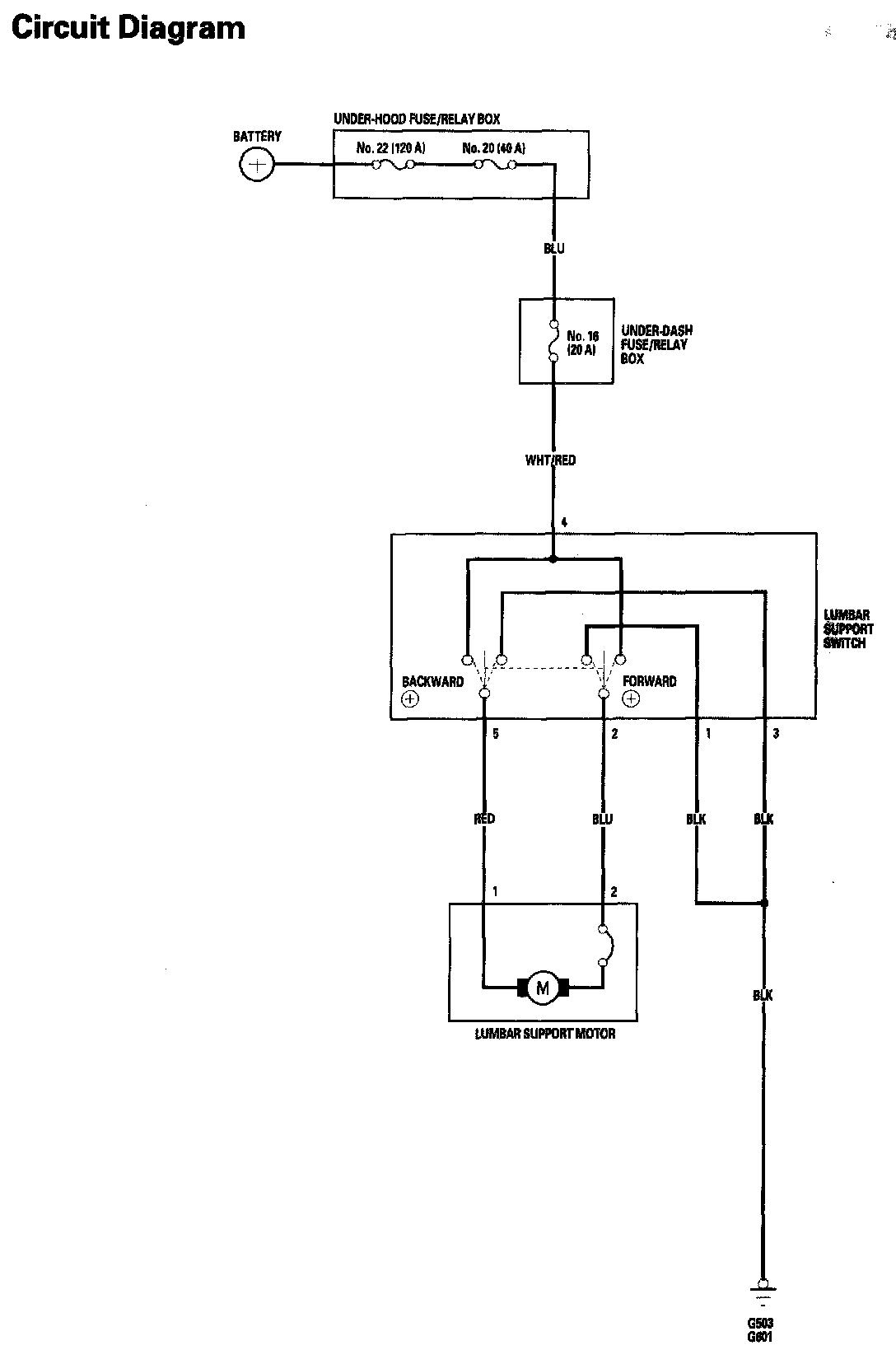

Power Lumbar Support Circuit Diagram
Power Lumbar Support Circuit Diagram
Power Lumbar Support - Circuit Diagram:
