Power Source For ECM/PCM Circuit D04
Power Source For ECM/PCM Circuit D04

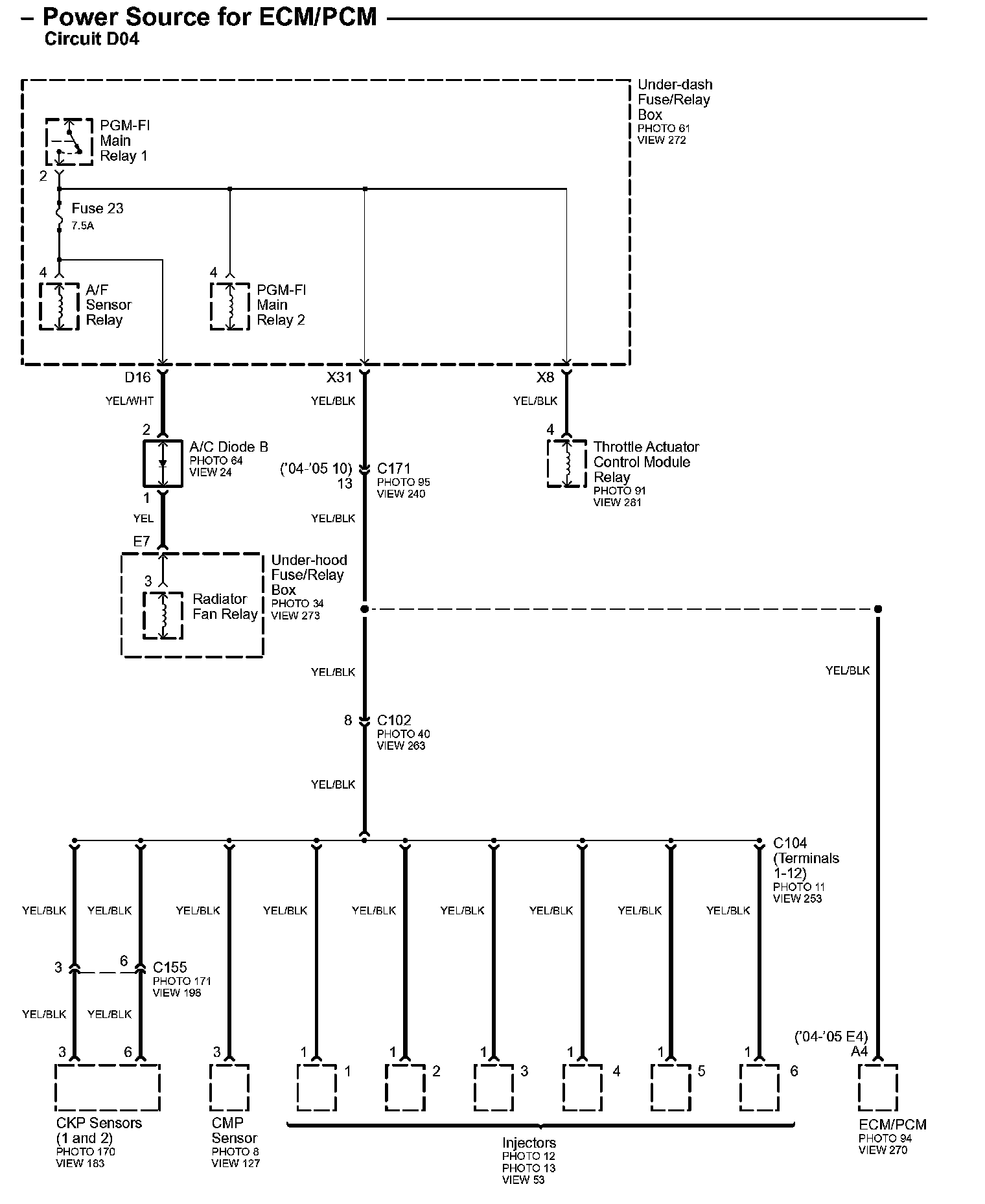

Power Source For ECM/PCM Circuit D04:
