Home >> Acura >> 2006 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 301-307 >> 306

View 301-307: 306

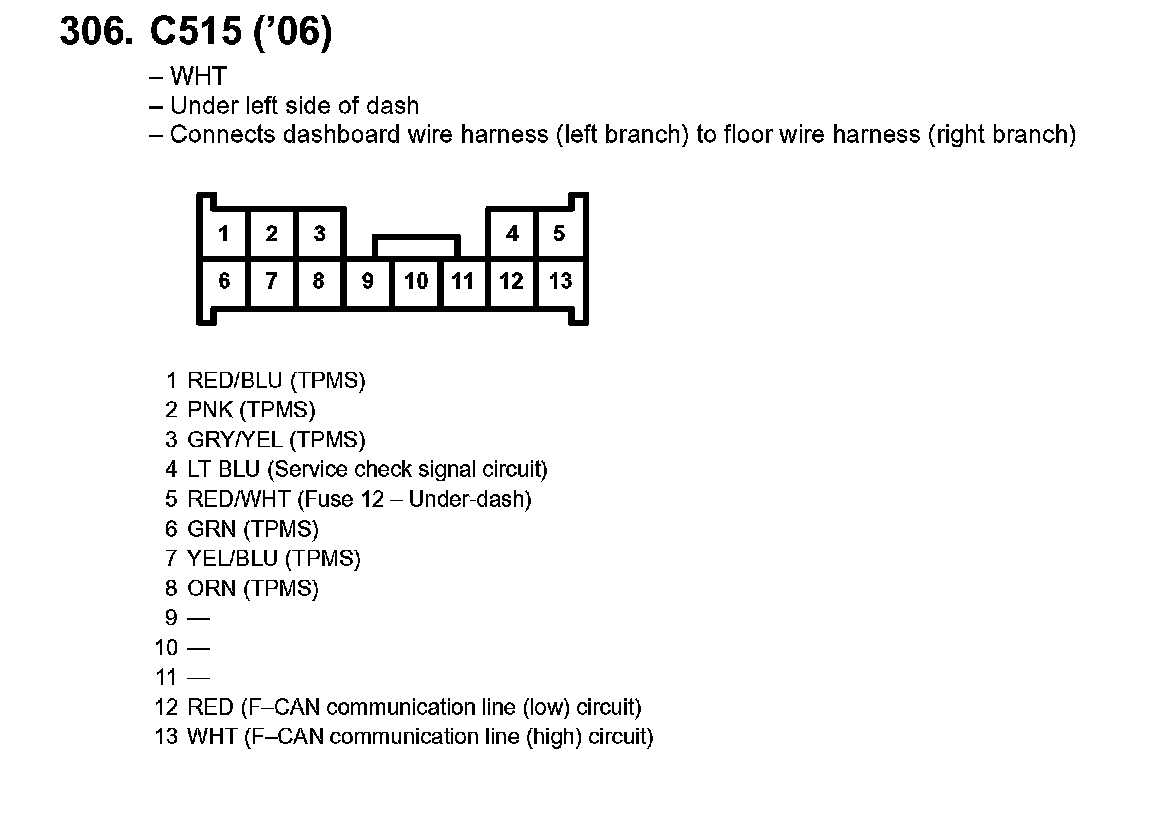

306. C515:
