Front Wipers Circuit Diagram
Front Wipers Circuit Diagram

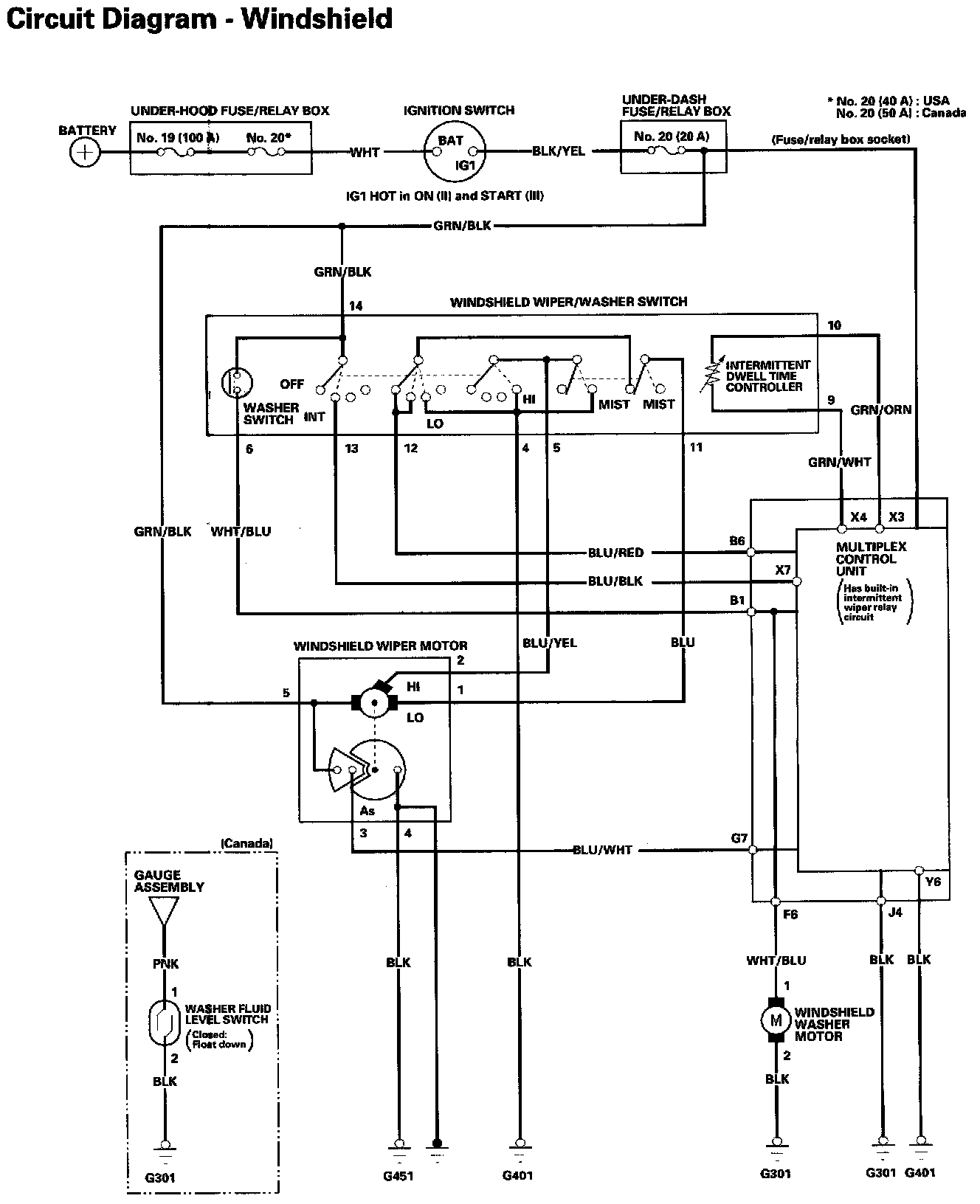

Wipers/Washers - Circuit Diagram - Windshield:
