Acura
>>
2006
>>
RSX L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Wire Harness
>>
Part 1
Part 1

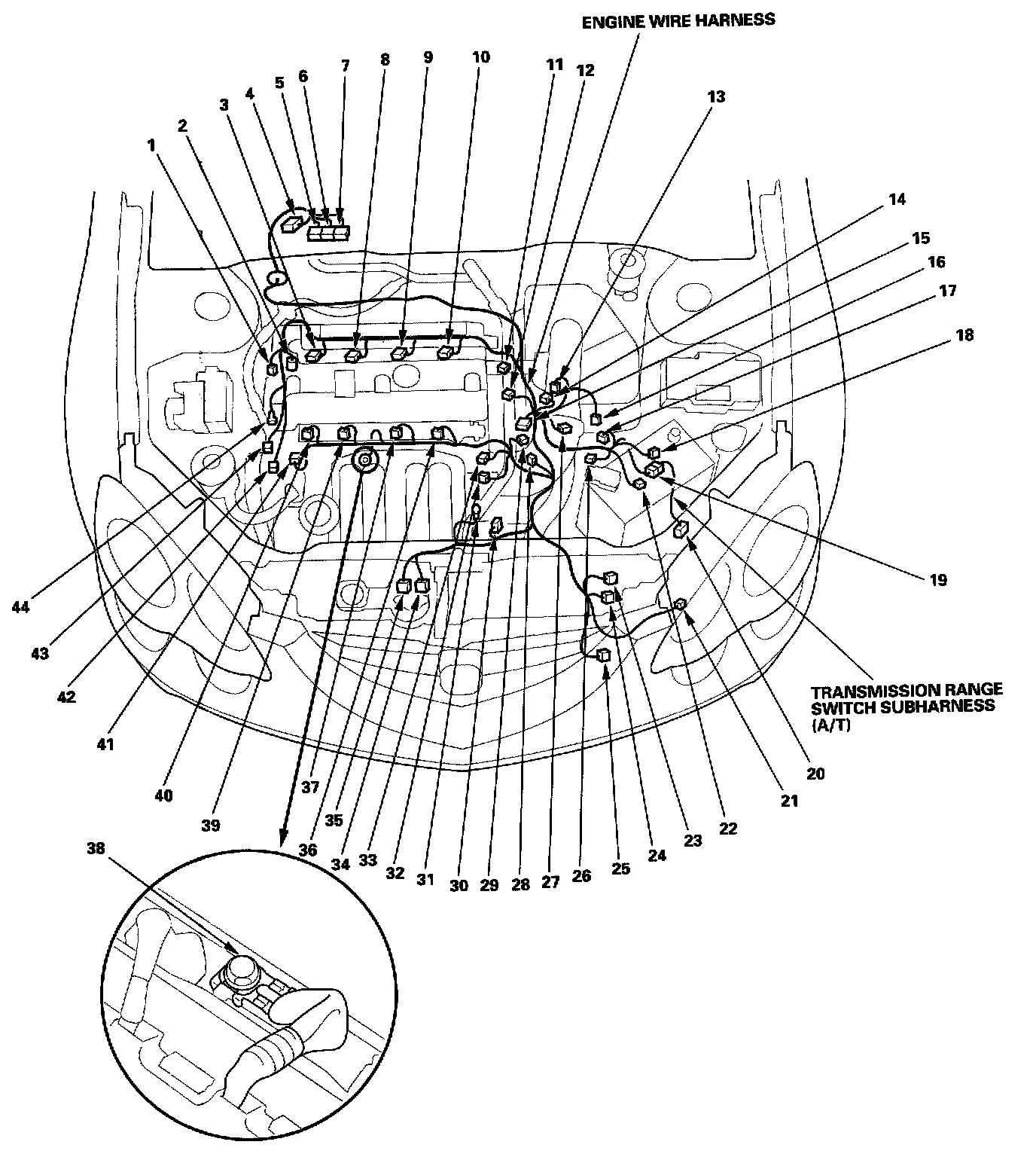

Harness Location View:

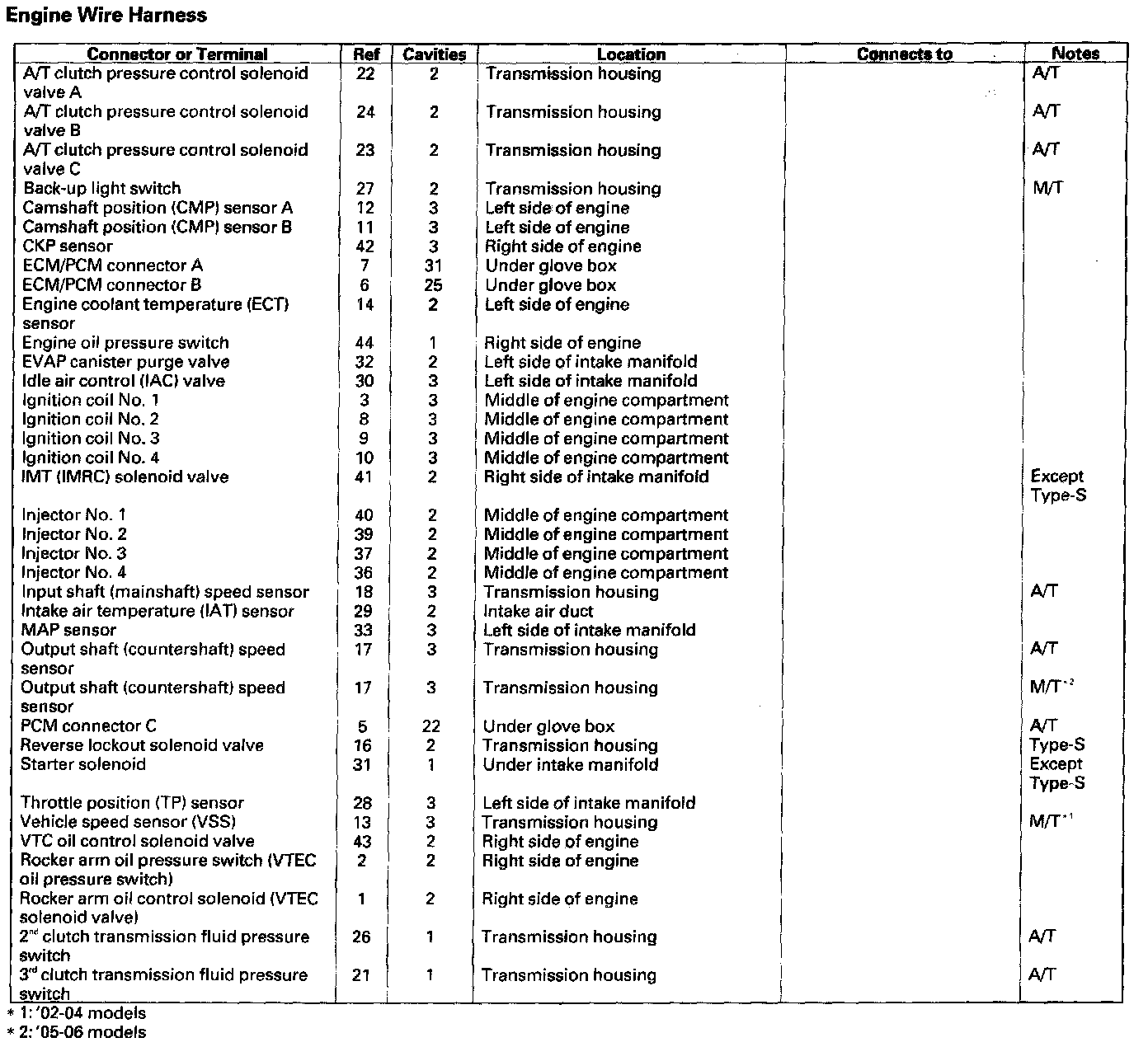

Engine Wire Harness:
