Seat Temperature Element
>>
Seat Heater Circuit Diagram
Seat Heater Circuit Diagram

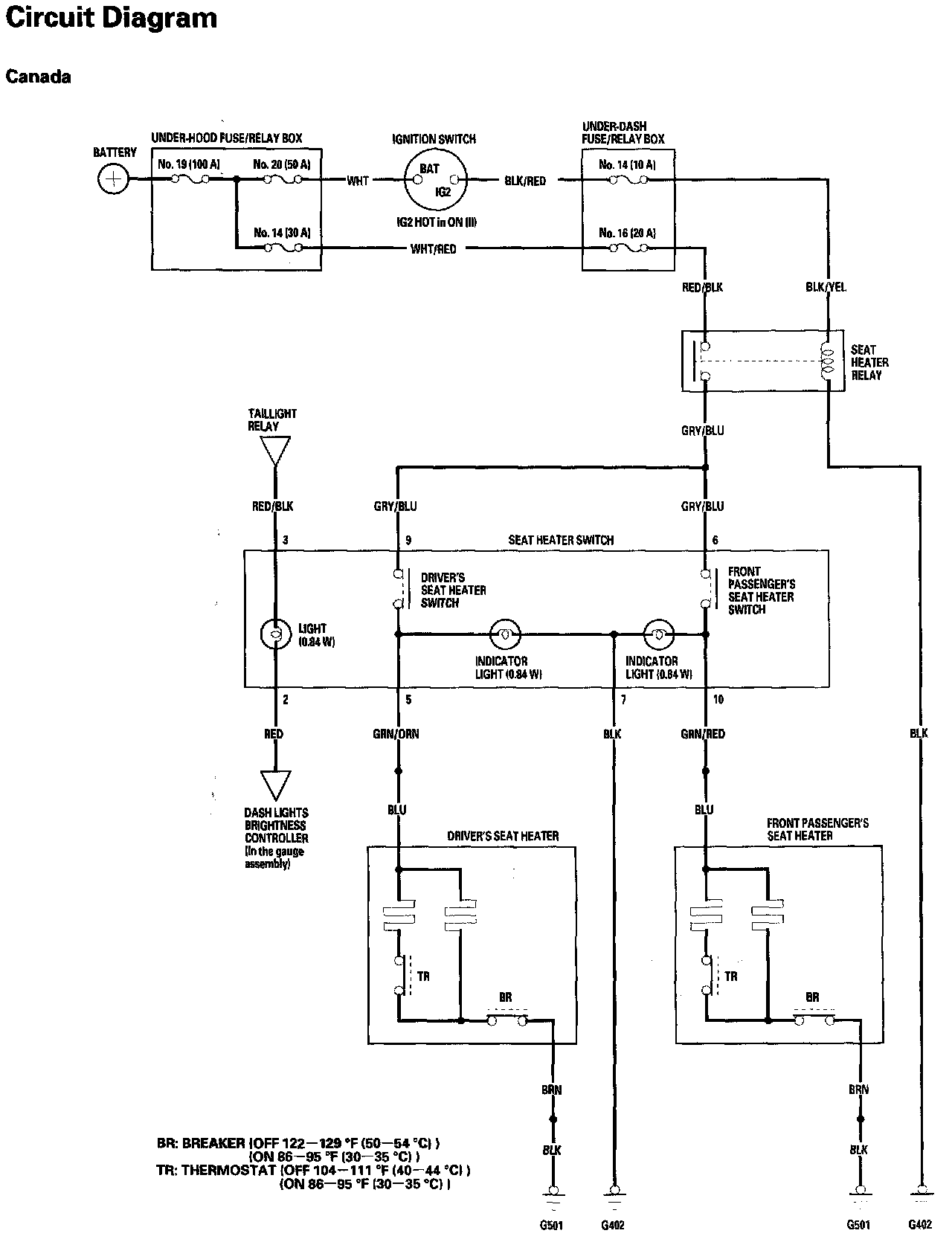

Seat Heaters - Circuit Diagram:
