Home >> Acura >> 2006 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 201-225 >> 202

View 201-225: 202

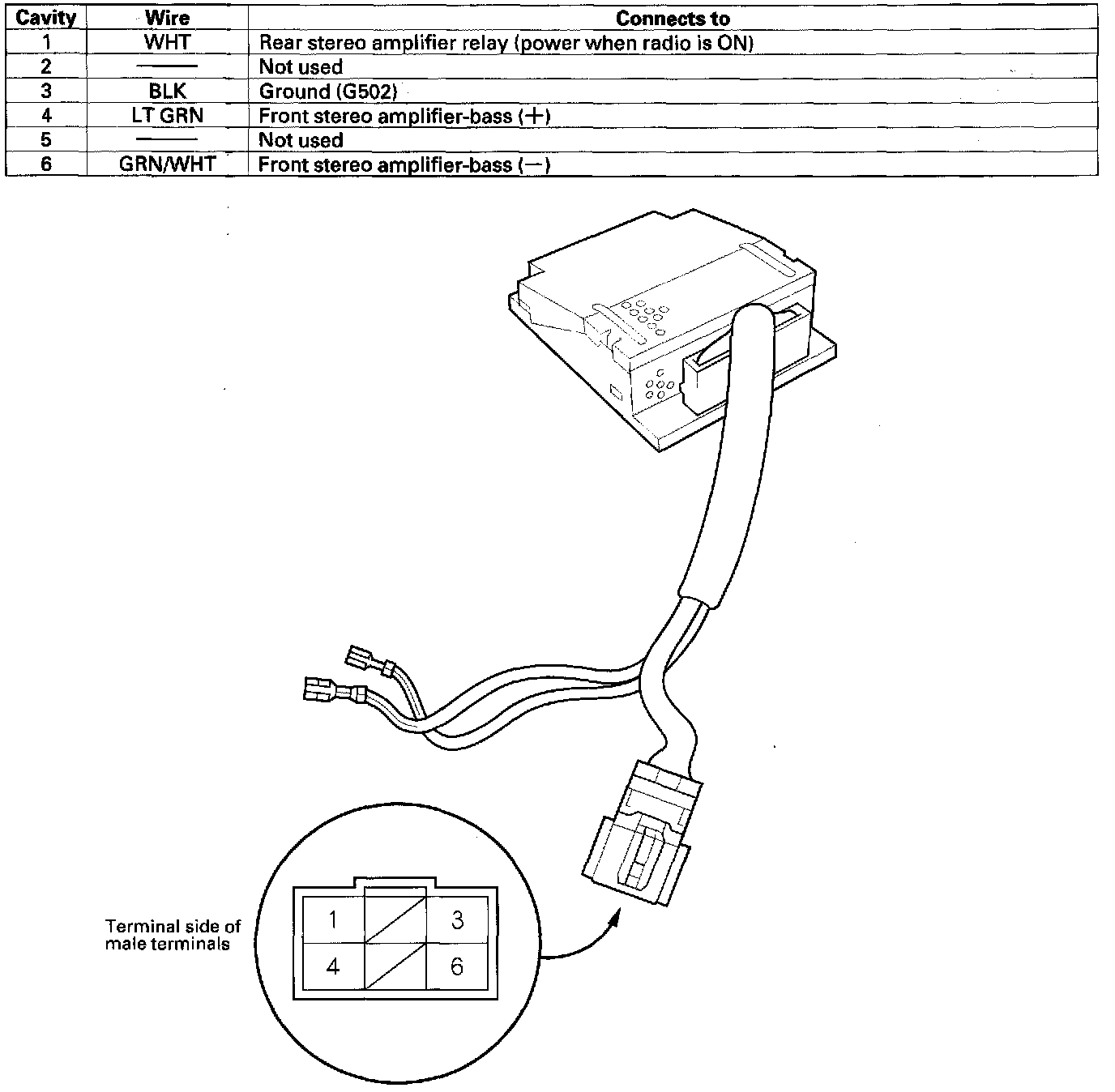

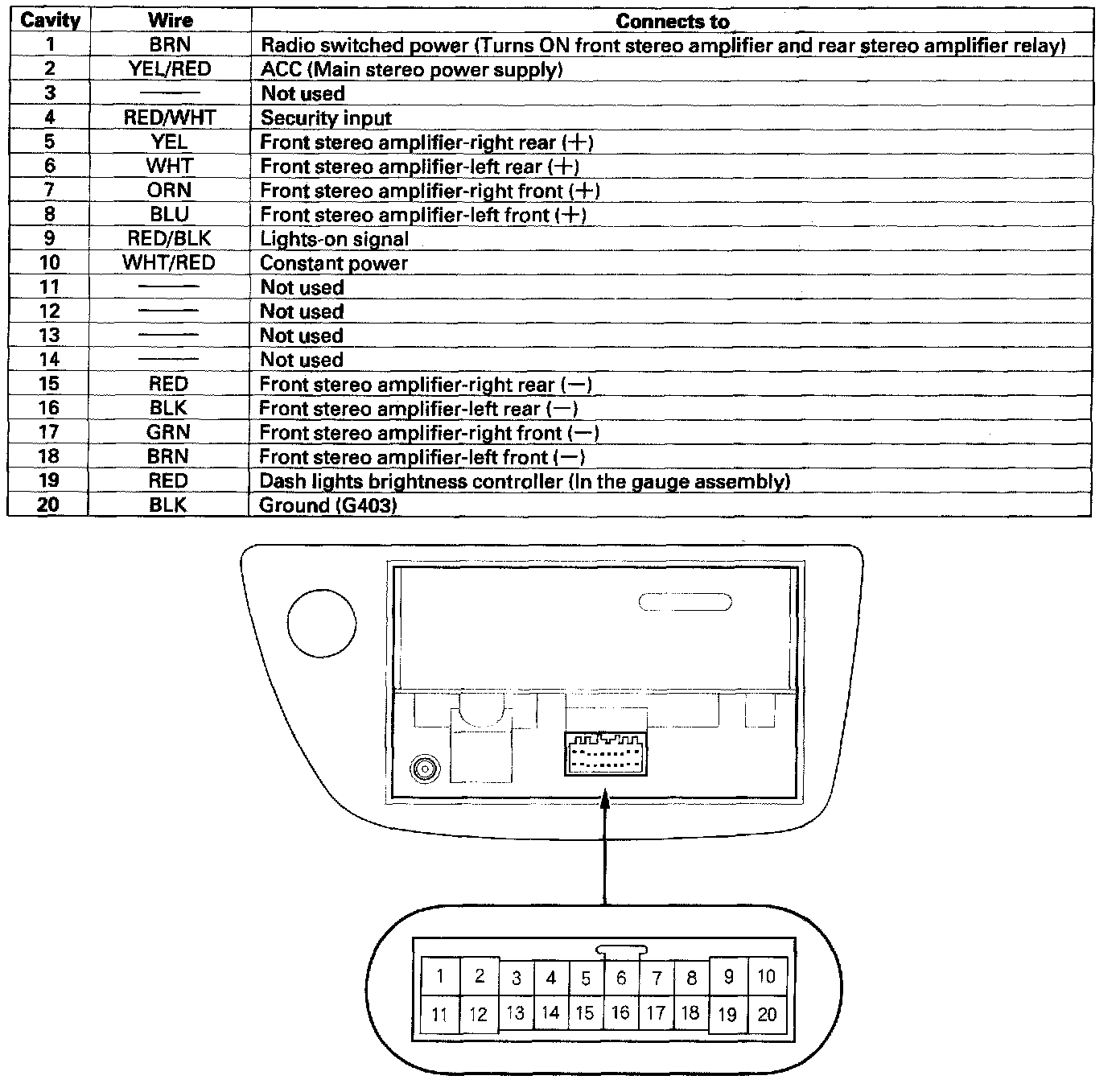

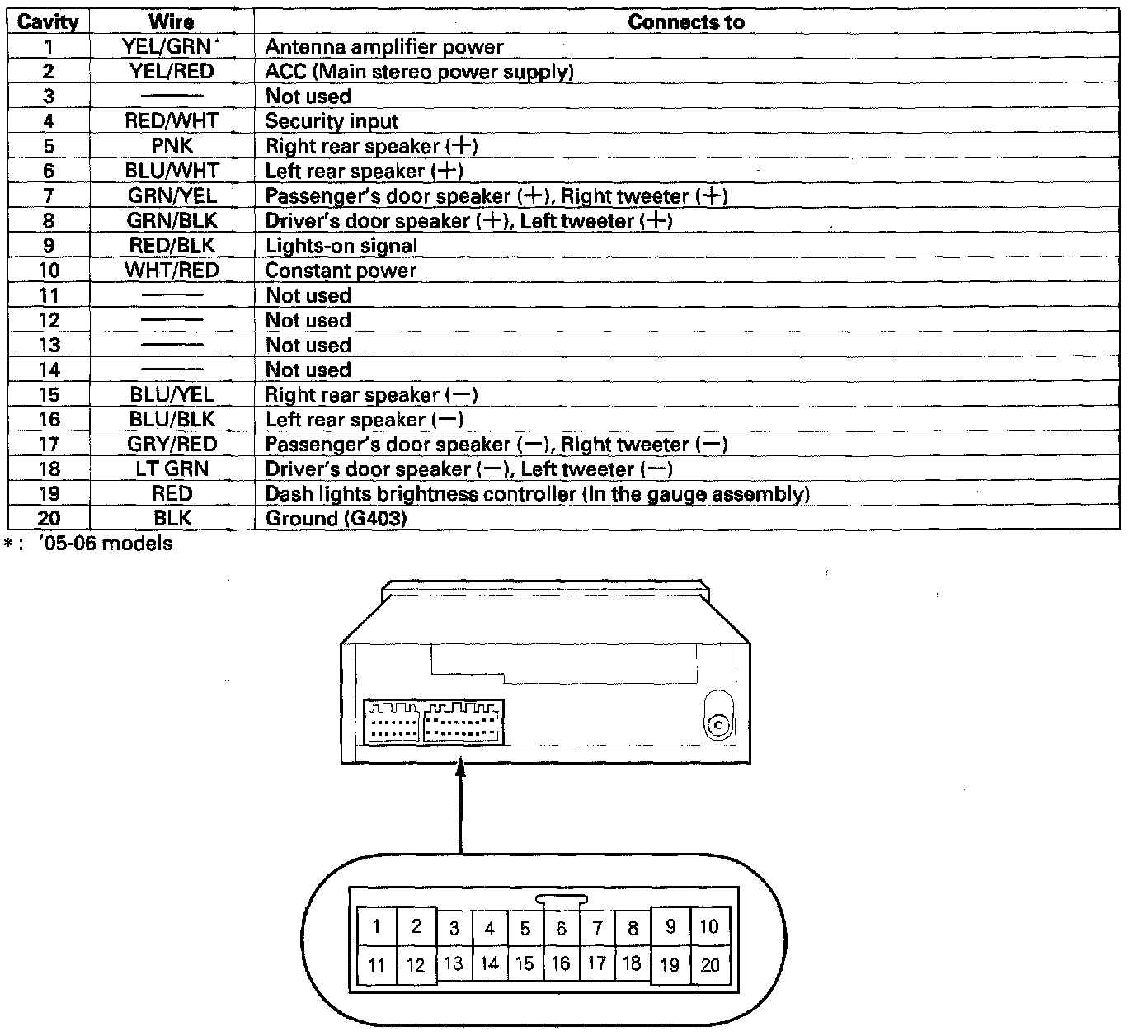

202. Audio Unit:
