Home >> Acura >> 2006 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 151-175 >> 175

View 151-175: 175

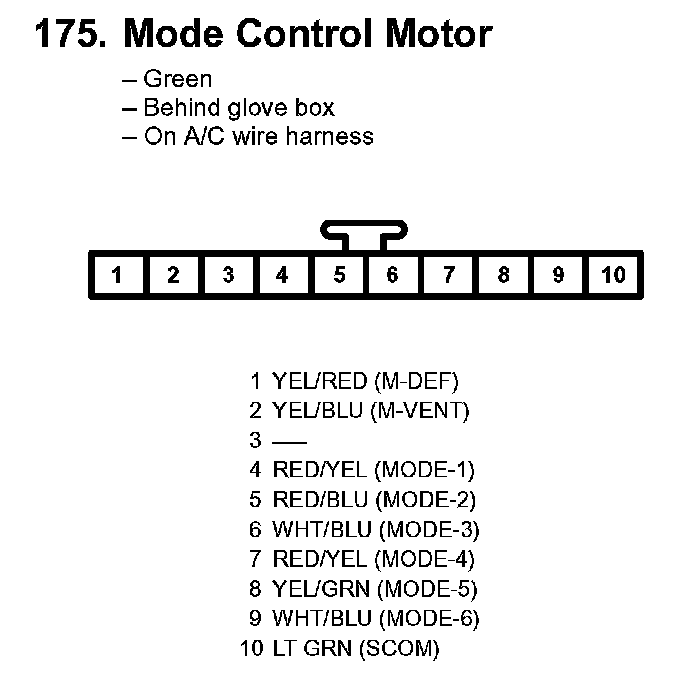

175. Mode Control Motor:
