Home >> Acura >> 2006 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 126-150 >> 132

View 126-150: 132

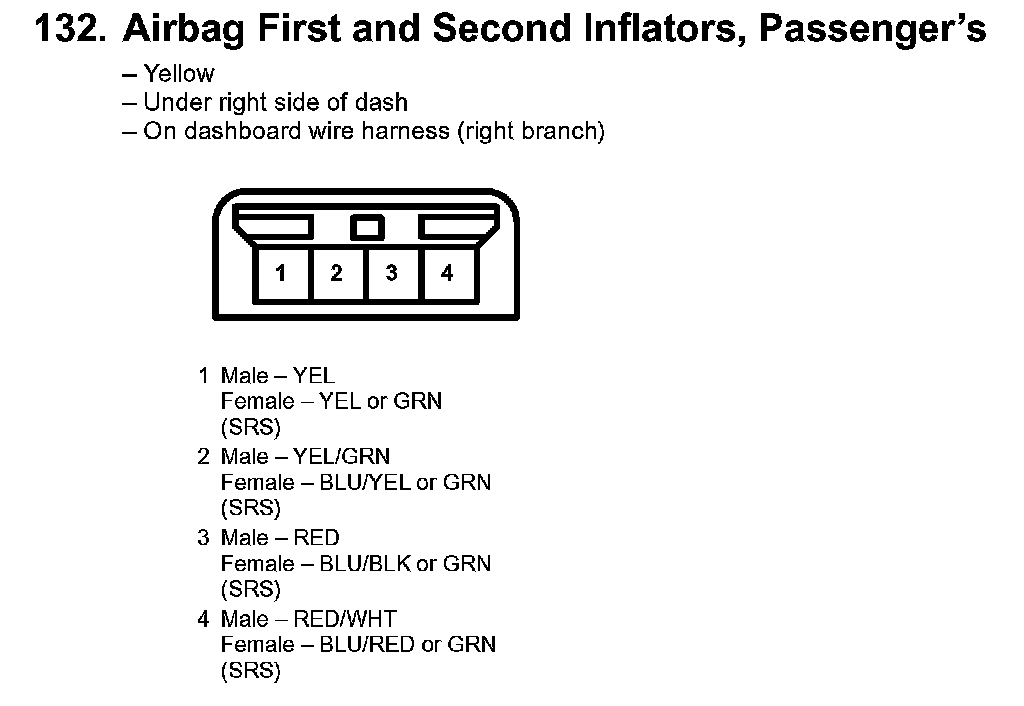

132. Airbag First And Second Inflators, Passenger's:
