Home
>>
Acura
>>
2006
>>
RL V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Connector Locations
>>
Under-dash Fuse/Relay Box
Under-dash Fuse/Relay Box

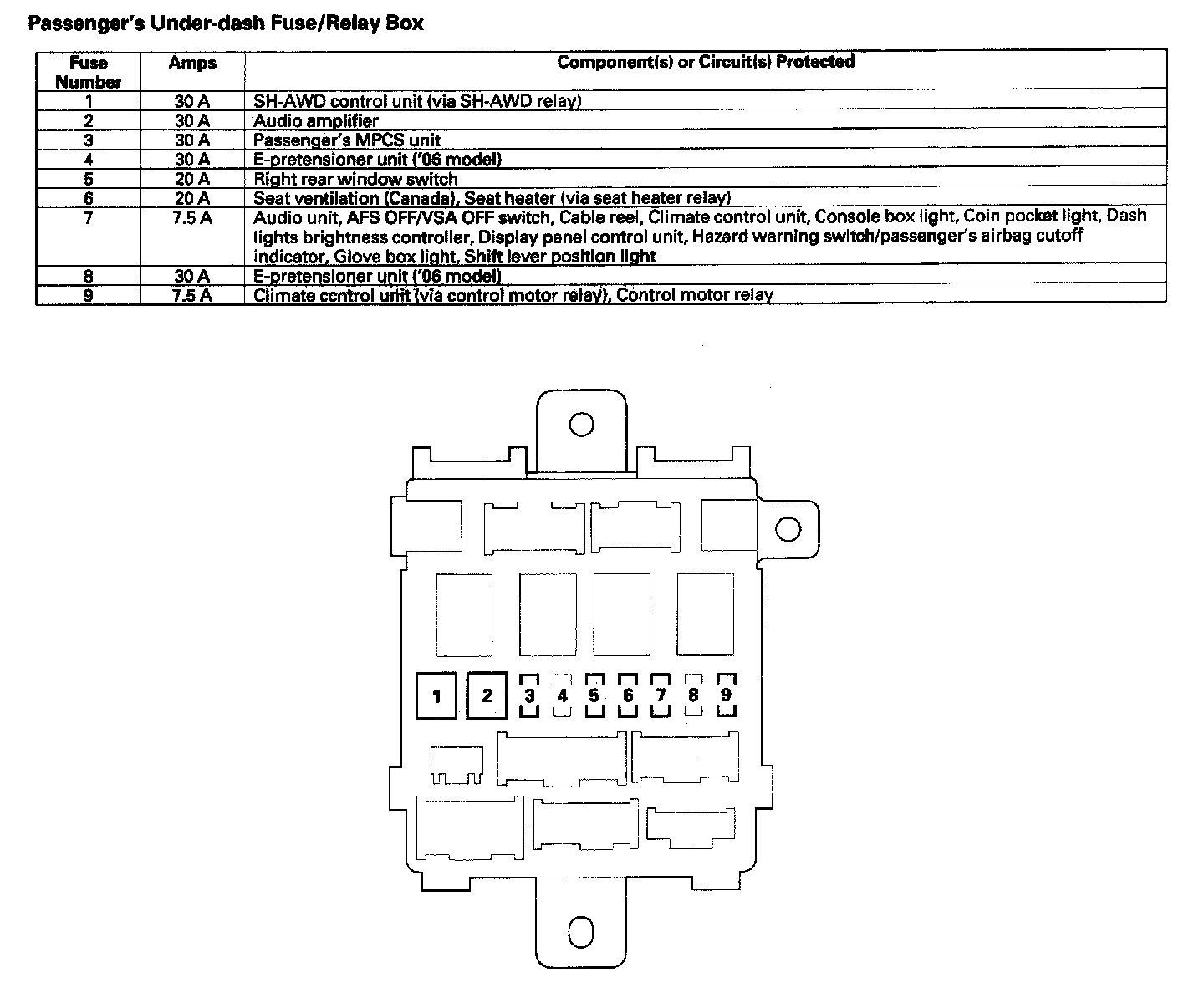

passenger's Under-dash Fuse/Relay Box:

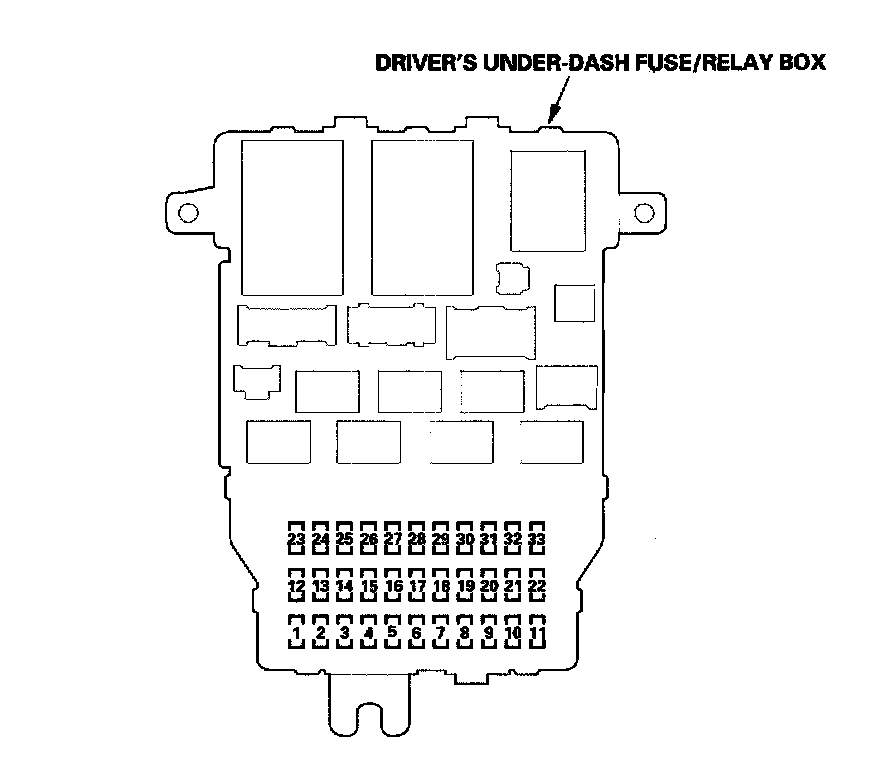

Driver's Under-dash Fuse/Relay Box:
Driver's Under-dash Fuse/Relay Box:
