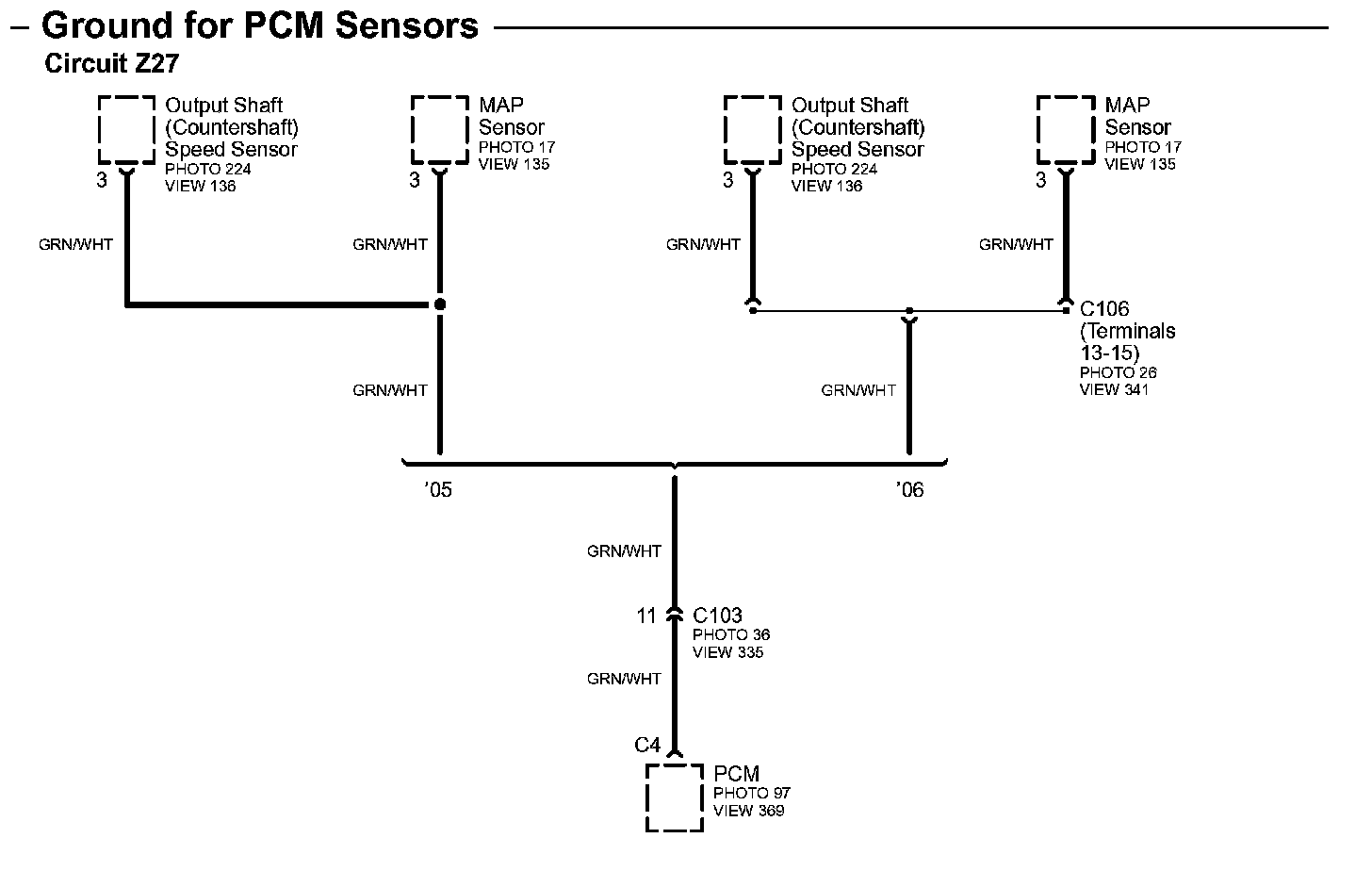

Ground For PCM Sensors Circuit Z27
Ground For PCM Sensors Circuit Z27
Ground For PCM Sensors Circuits 227:
