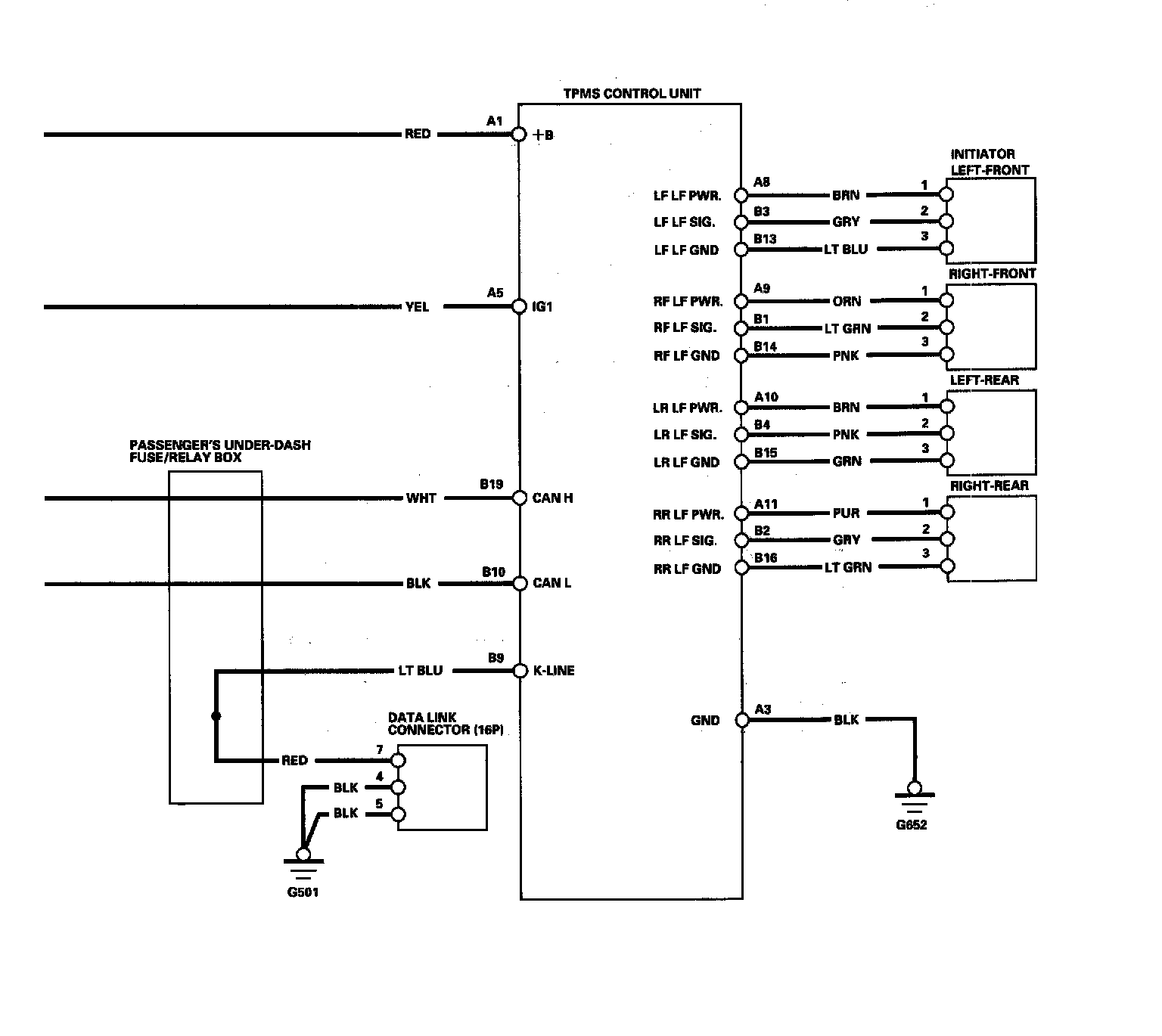

Tire Pressure Monitoring System Circuit Diagram:
Tire Pressure Monitoring System Circuit Diagram:
Tire Pressure Monitoring System Circuit Diagram:
