Acura
>>
2006
>>
RL V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
Circuit Diagrams
Circuit Diagrams

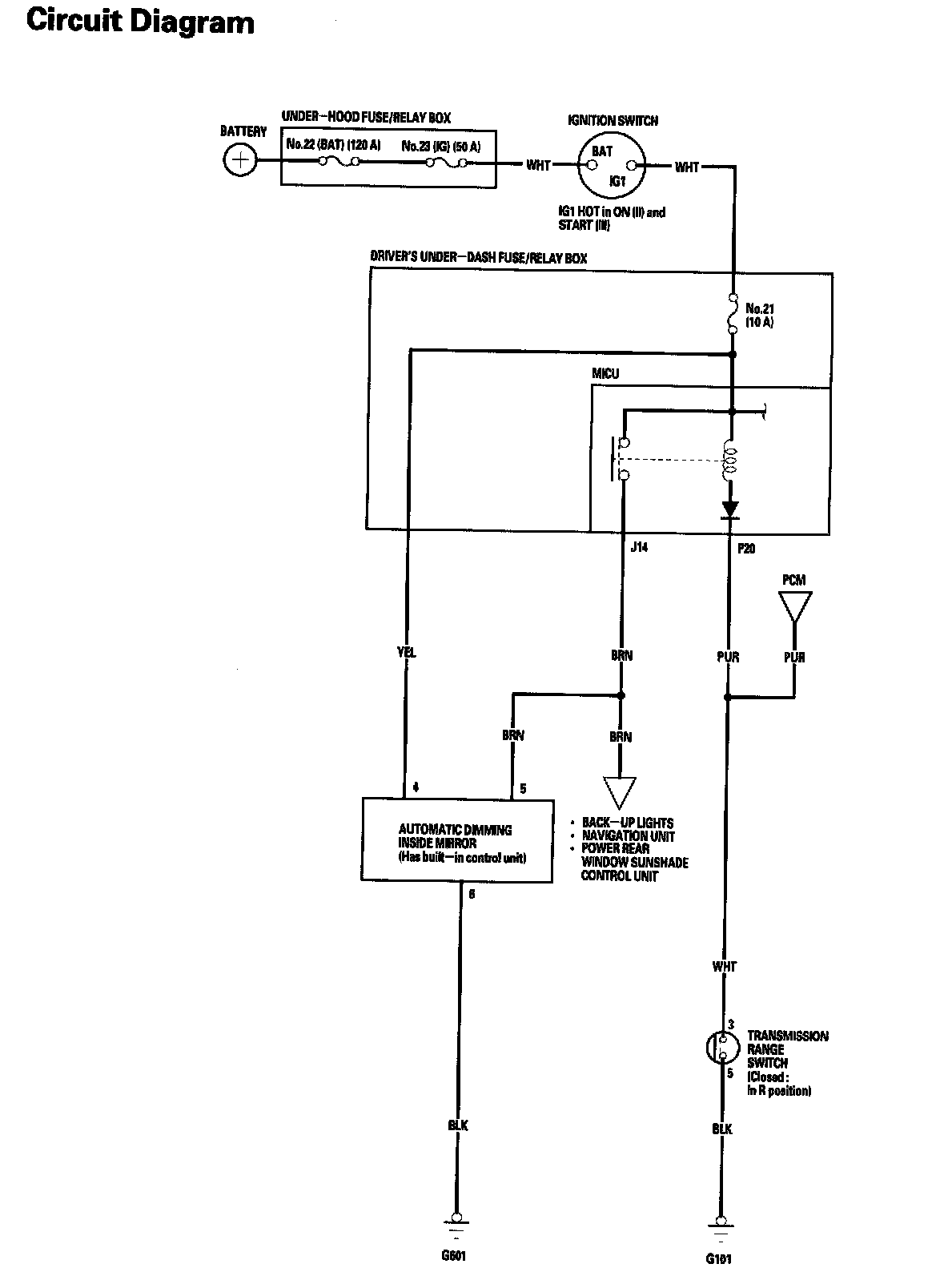

Automatic Dimming Inside Mirror - Circuit Diagram:
