Seat Temperature Switch
Seat Temperature Switch

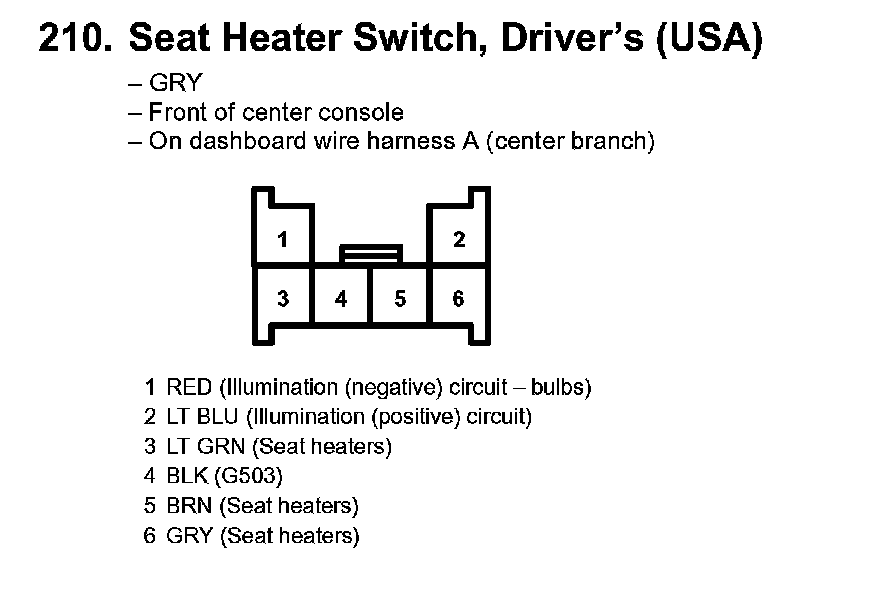

210. Seat Heater Switch, Driver's (USA):

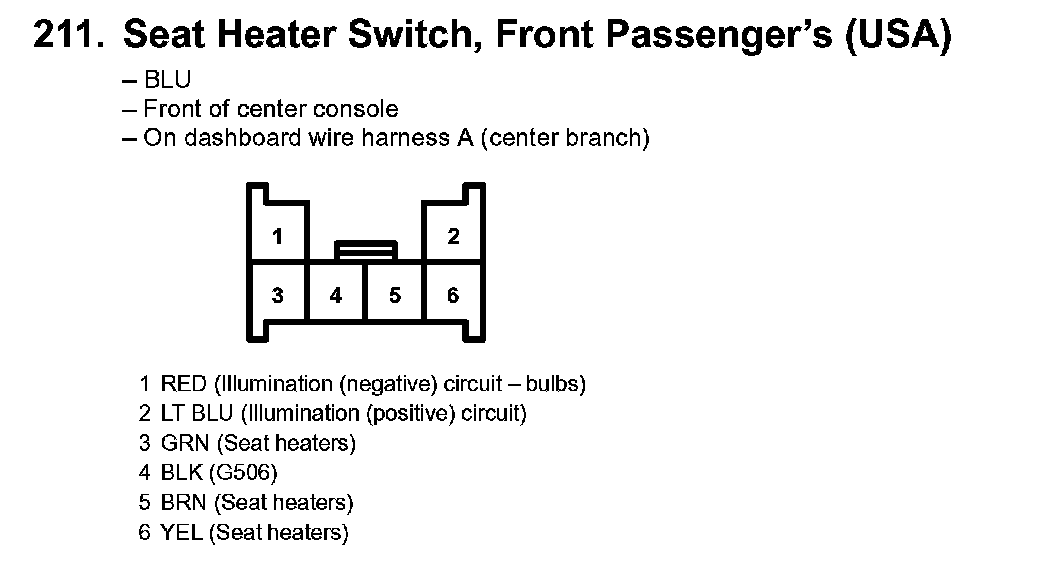

211. Seat Heater Switch, Front Passenger's (USA):
