Home >> Acura >> 2006 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 301-325 >> 322

View 301-325: 322

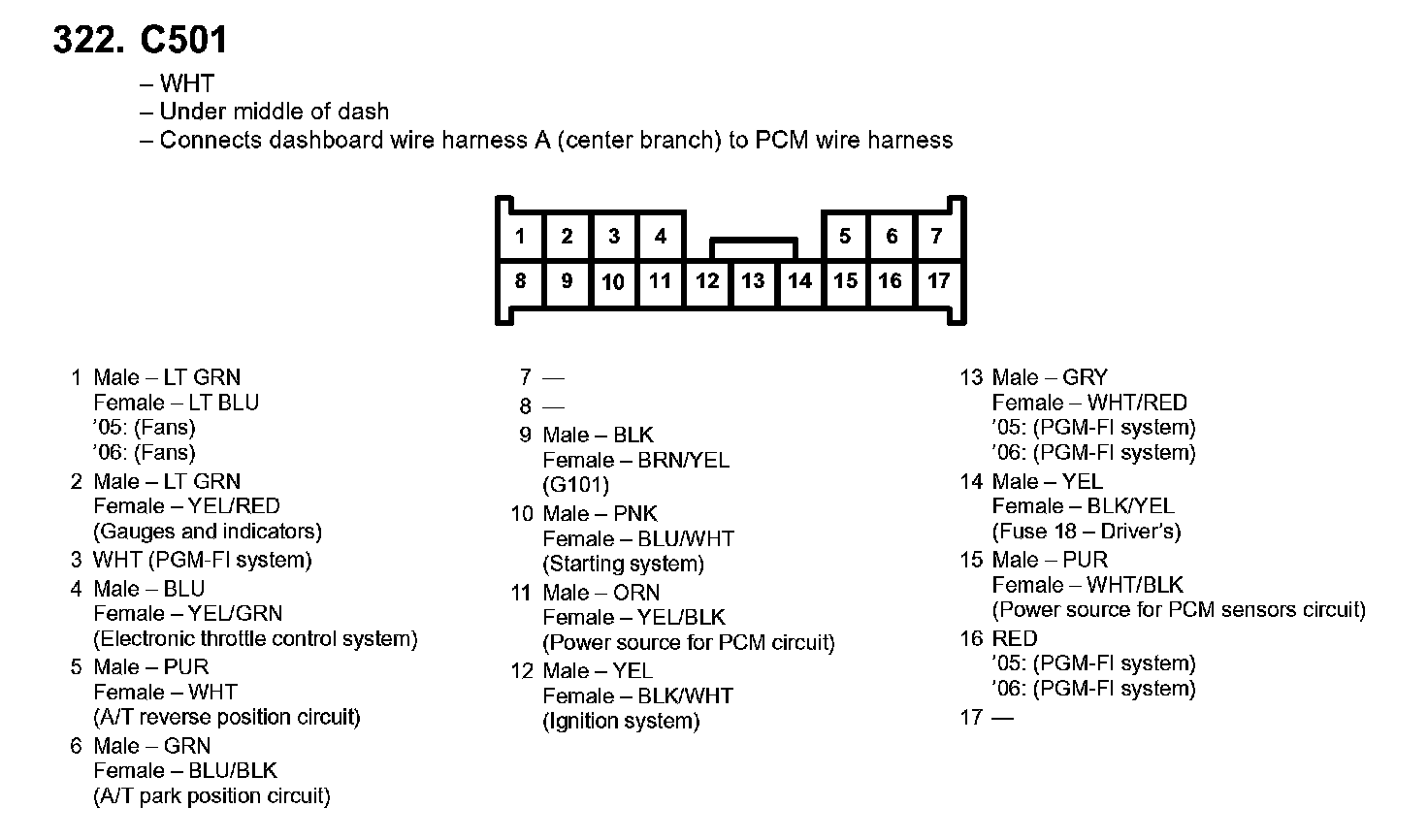

322. C501:
