Circuit Z28 Ground For ECM/PCM Sensors
Circuit Z28 Ground For ECM/PCM Sensors

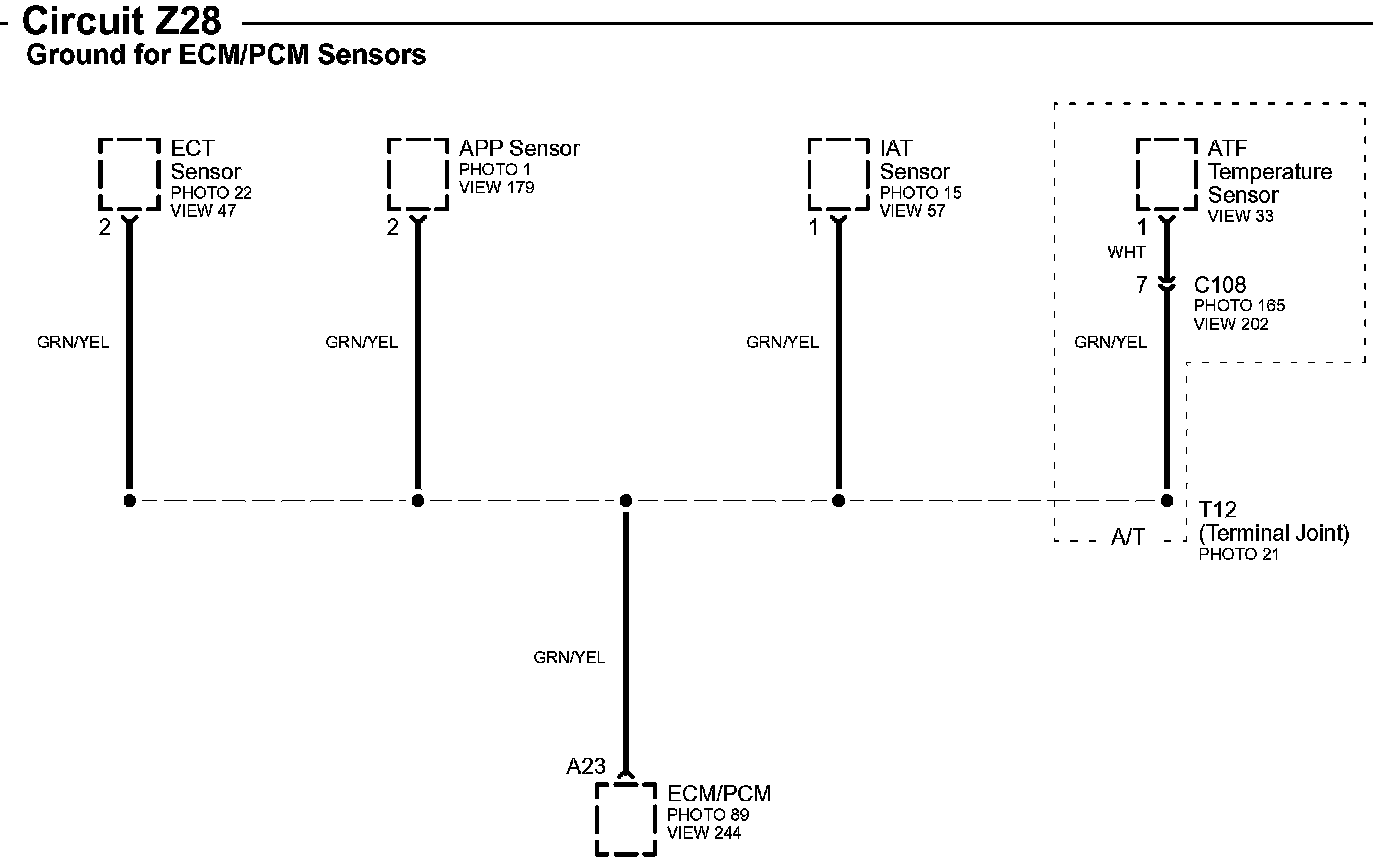

Circuit Z28 Ground For ECM/PCM Sensors:
