Information Bus: Locations

Relay And Control Unit Locations - Dashboard:

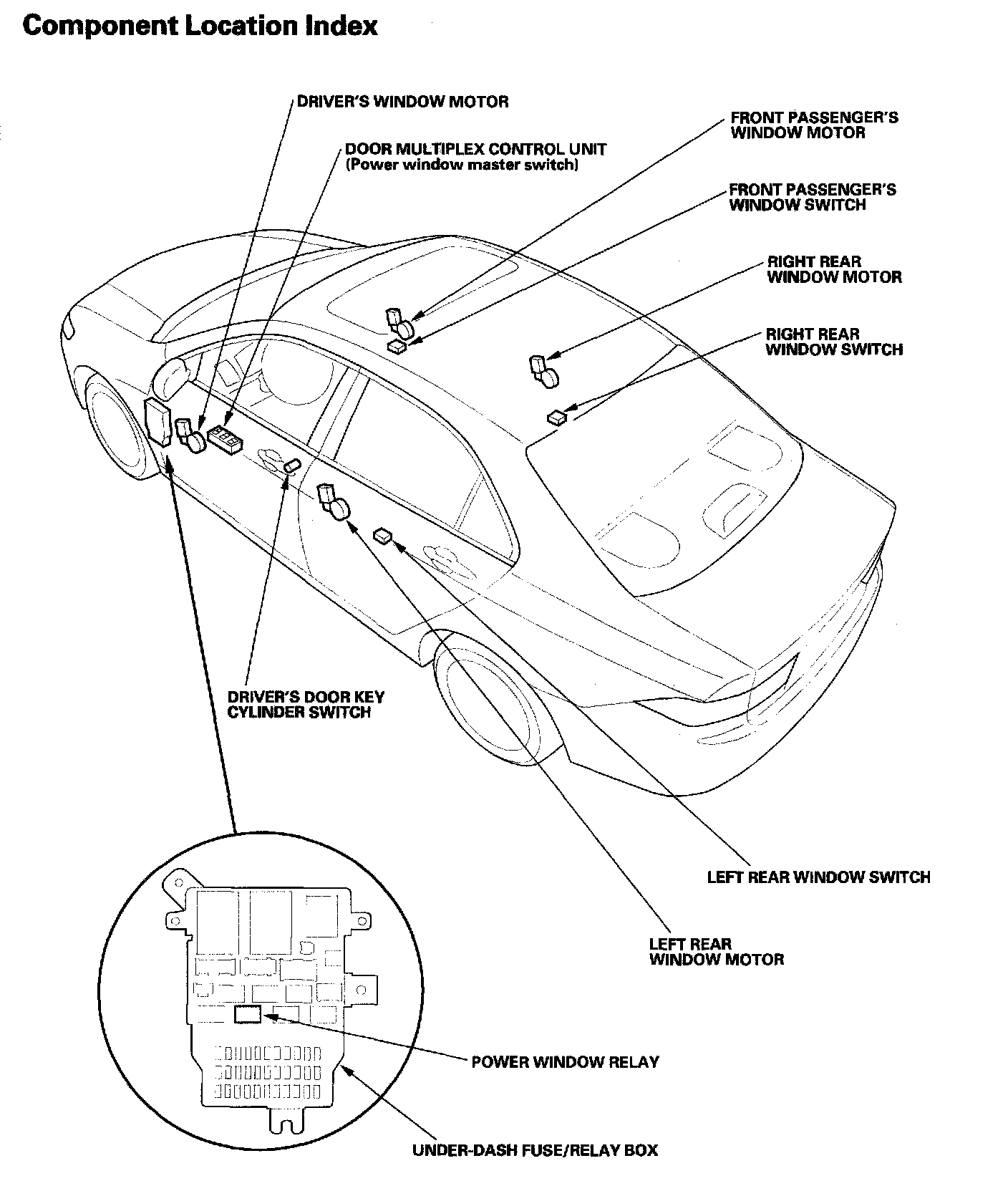

Power Windows - Component Location Index:
