Acura
>>
2005
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Shift Interlock, A/T
Shift Interlock, A/T

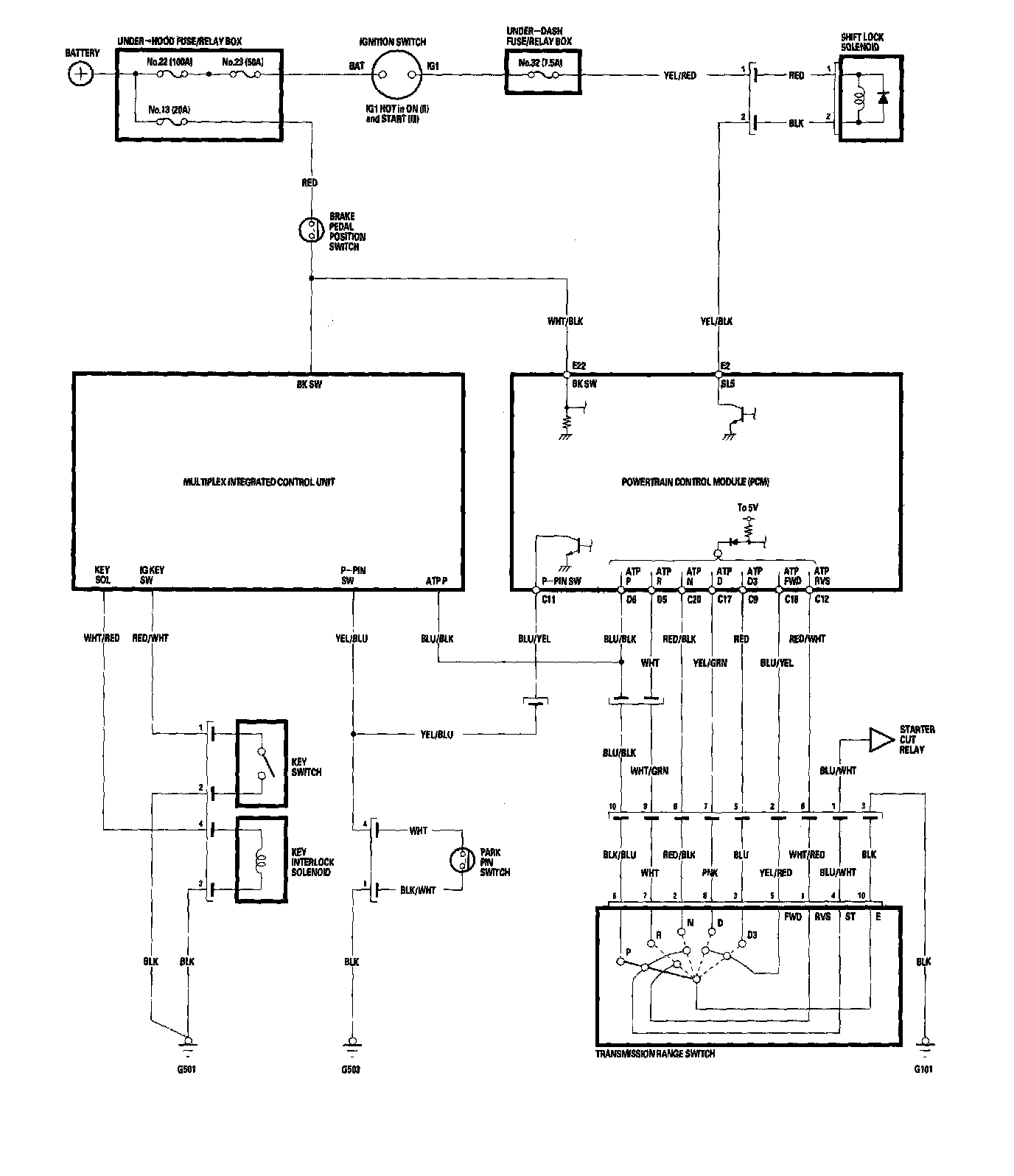

A/T Interlock System Circuit:
