Acura
>>
2005
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Circuit Diagrams
Circuit Diagrams

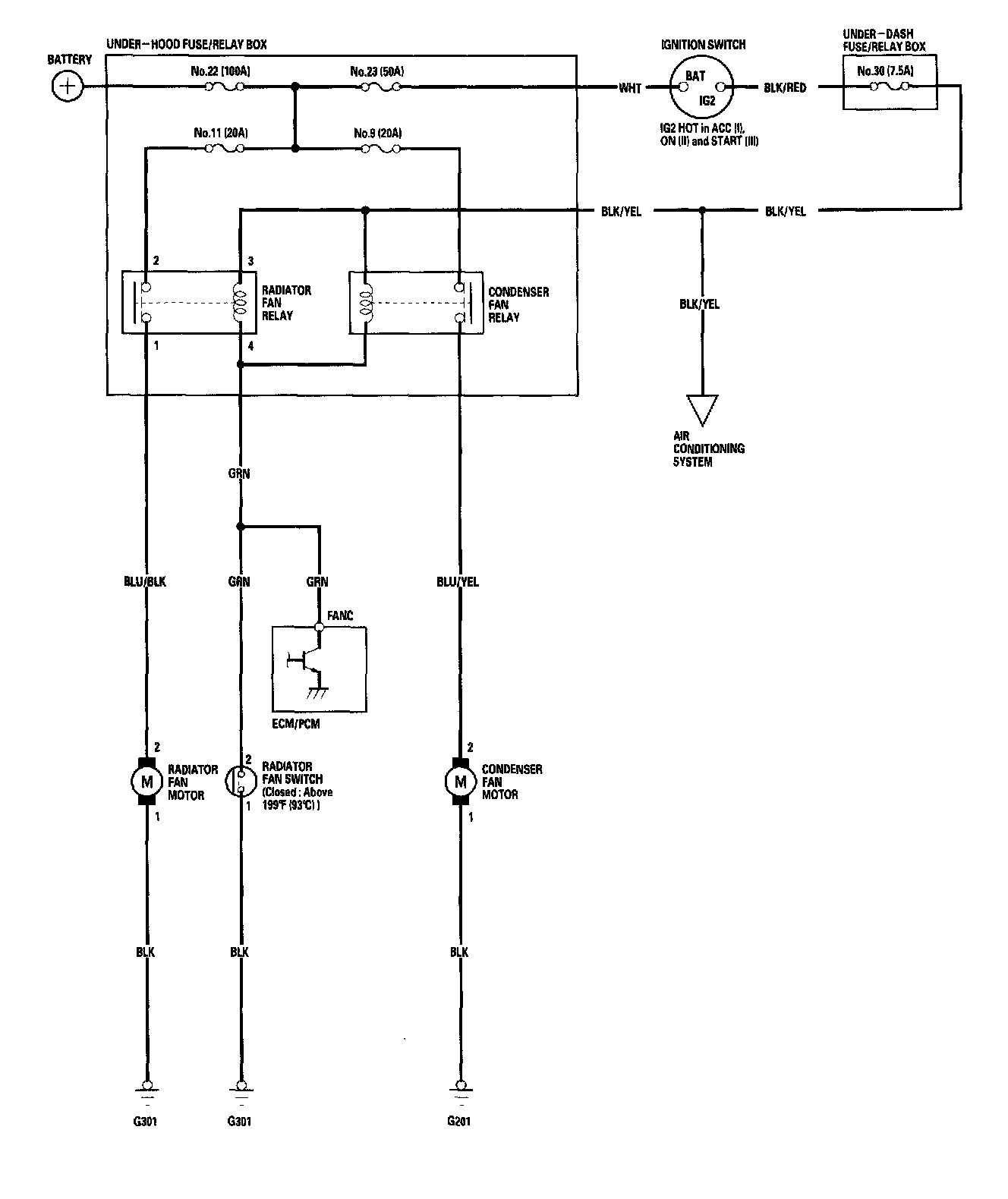

Circuit Diagram
