Antilock Brakes / Traction Control Systems
>>
Circuit Diagrams
Circuit Diagrams

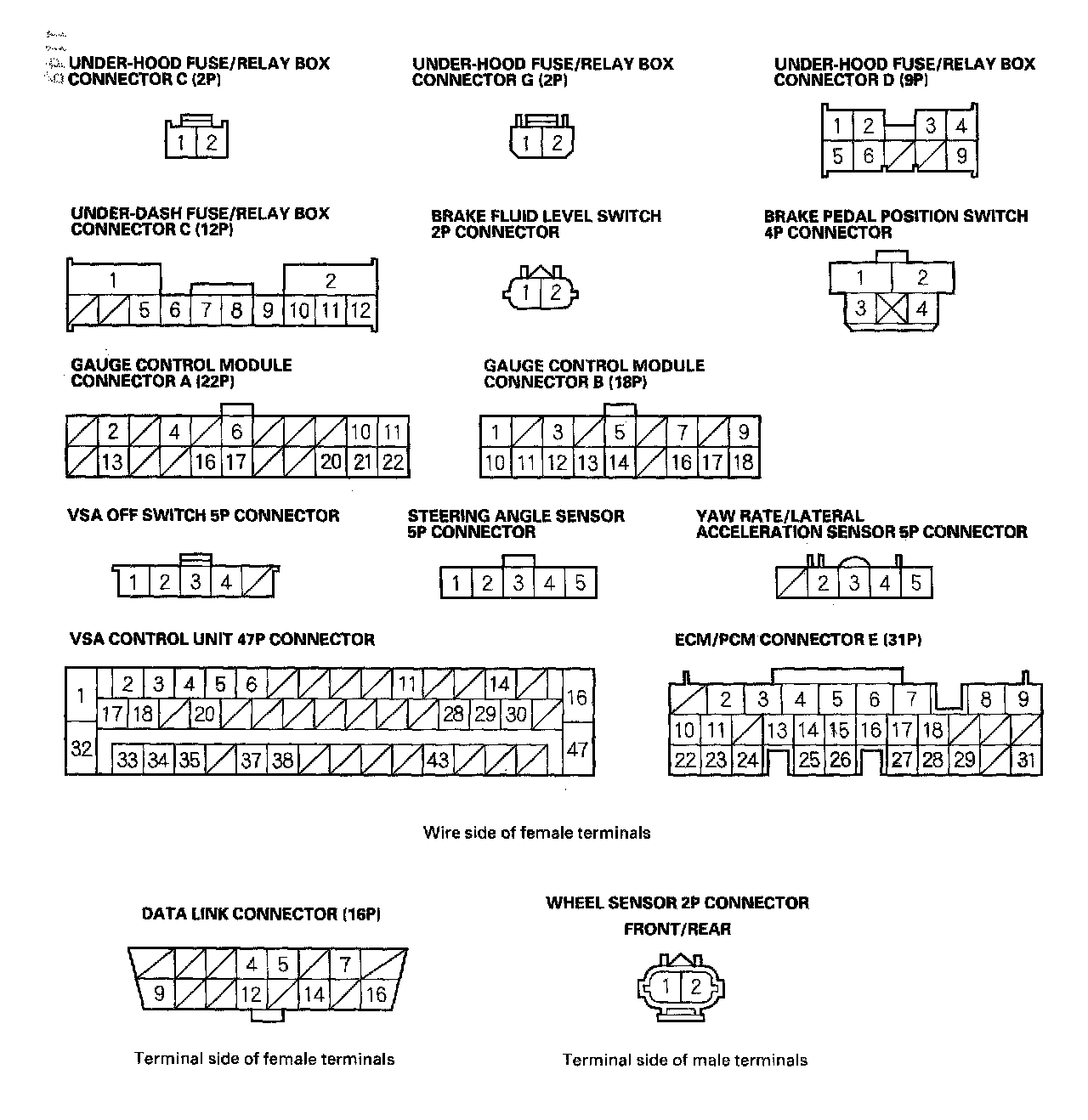

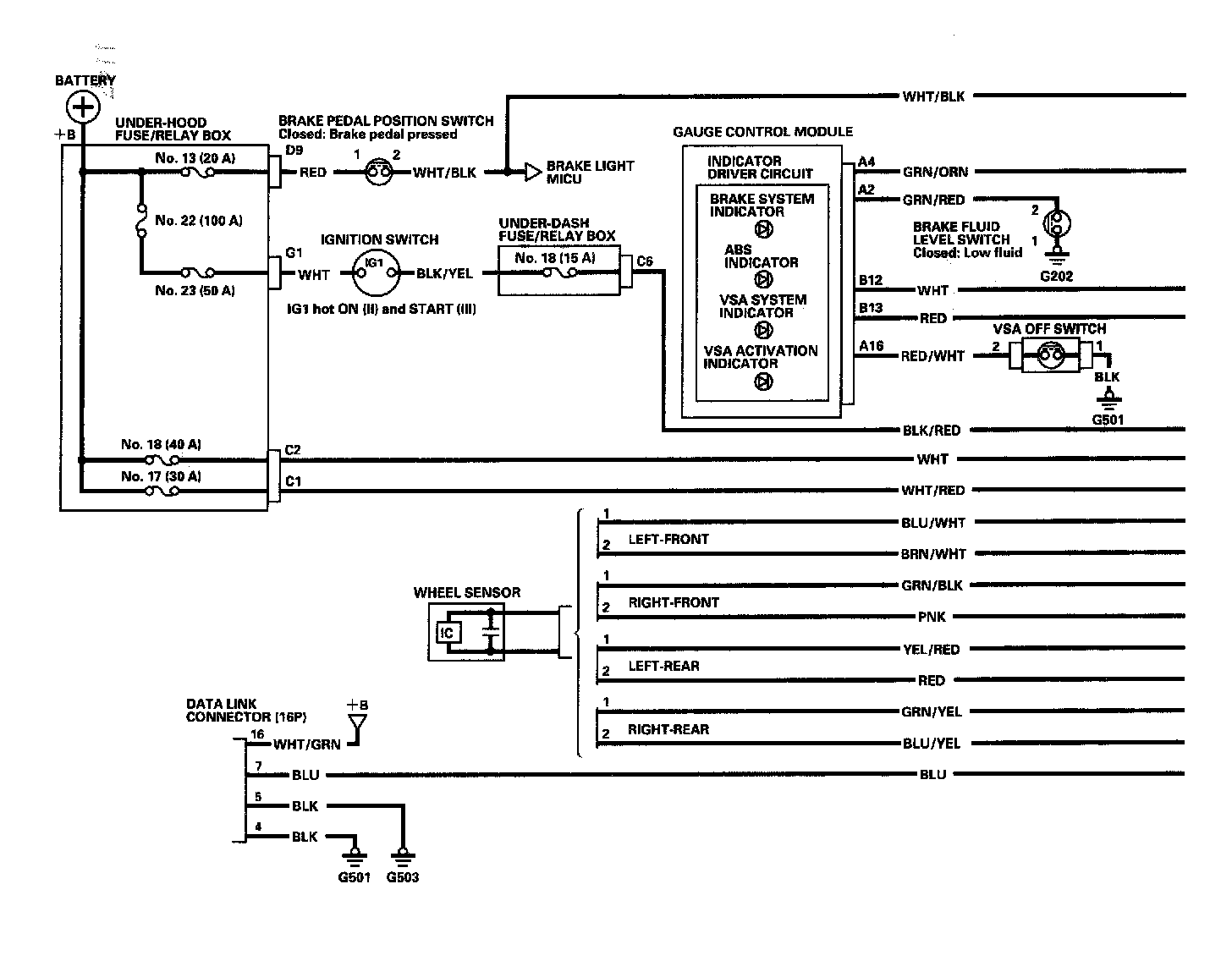

VSA System Circuit Diagram (Part 1):

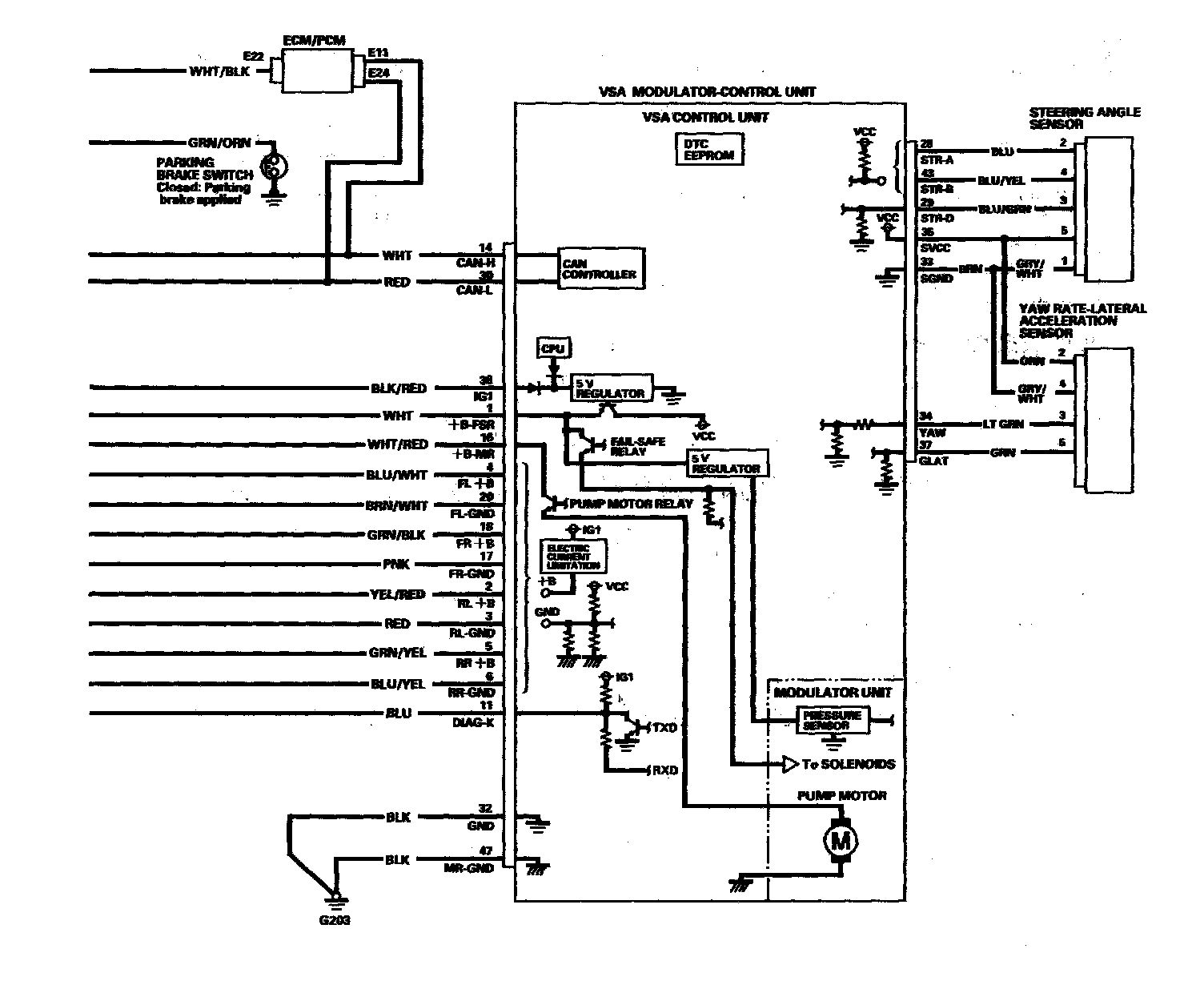

VSA System Circuit Diagram (Part 2):
VSA System Circuit Diagram (Part 3):
