Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

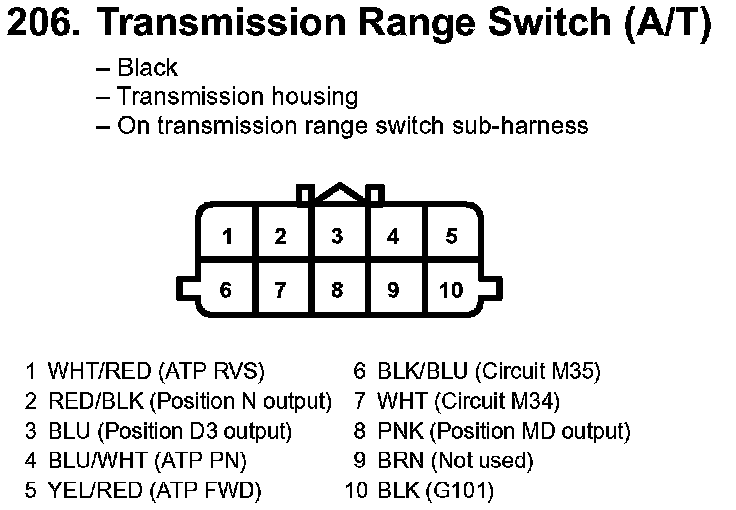

206. Transmission Range Switch (A/T):
