Home
>>
Acura
>>
2005
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
Instrument Panel Control Module
Instrument Panel Control Module

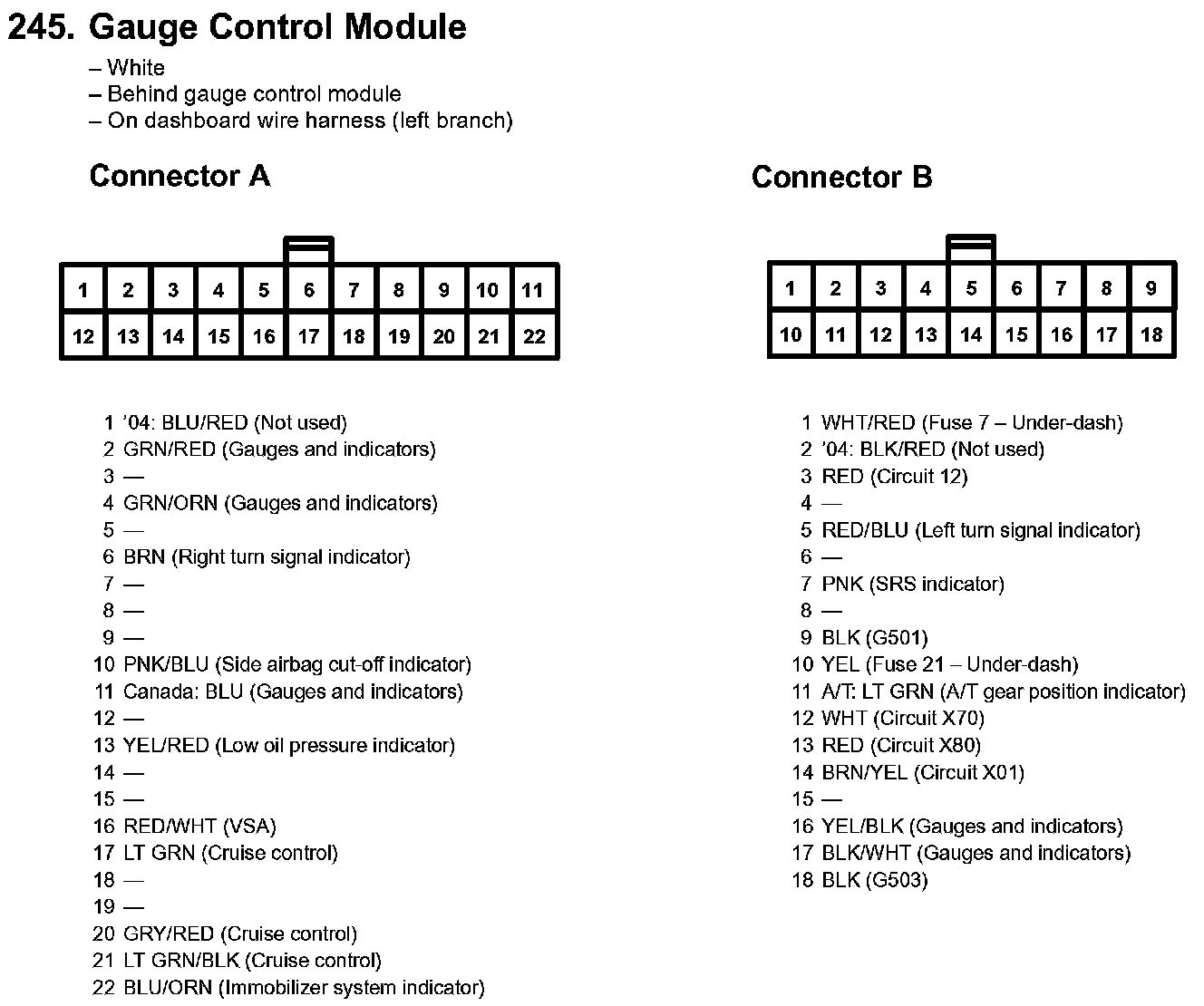

245. Gauge Control Module:
