Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Acura
>>
2005
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Braking Sensor/Switch
Braking Sensor/Switch

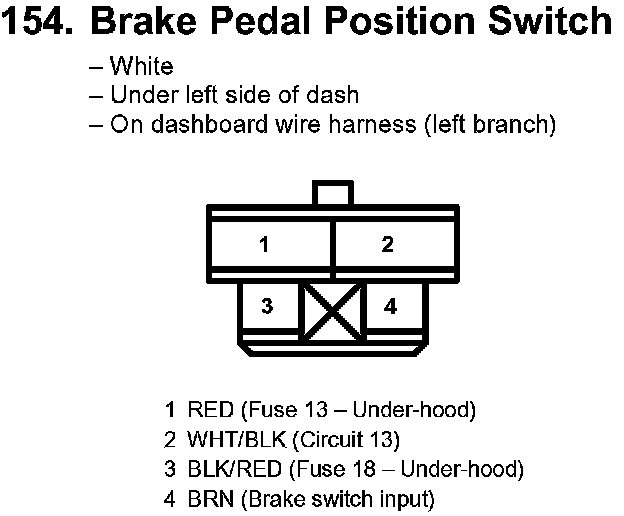

154. Brake Pedal Positon Switch:
