Home >> Acura >> 2005 >> TSX L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Locations >> Connector Locations

Connector Locations

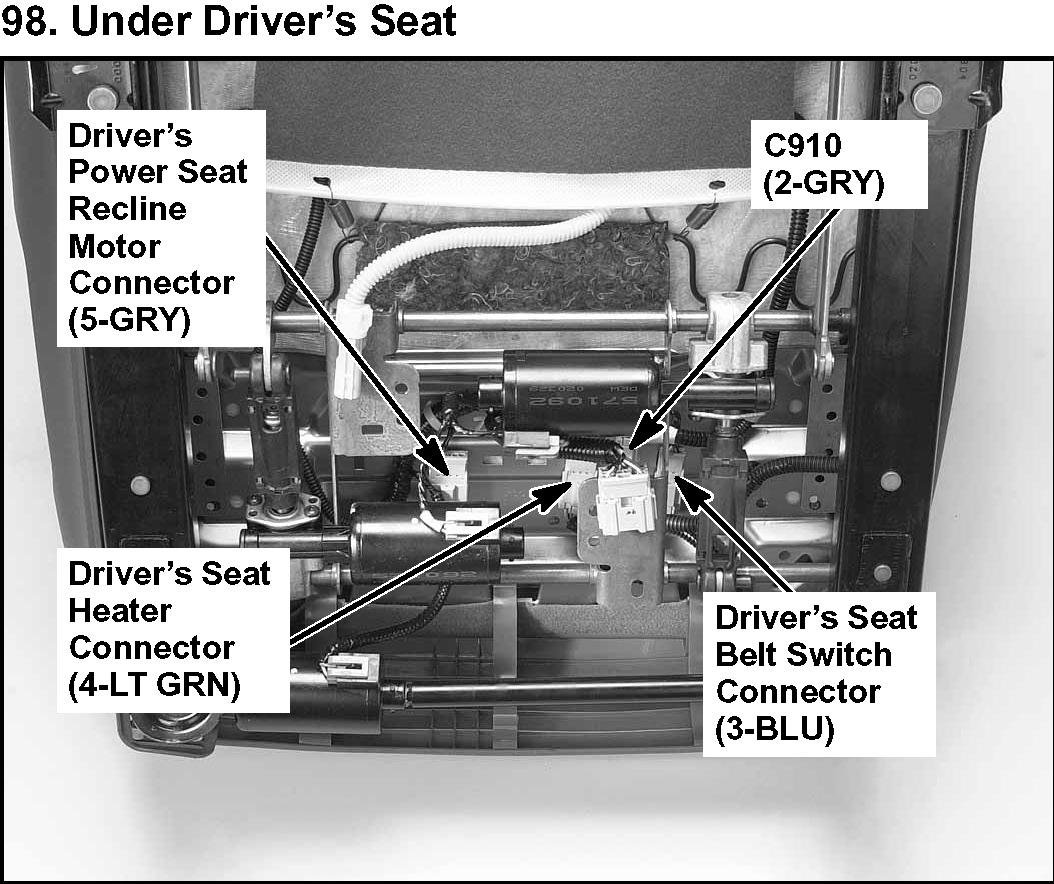

98. Under Driver's Seat:

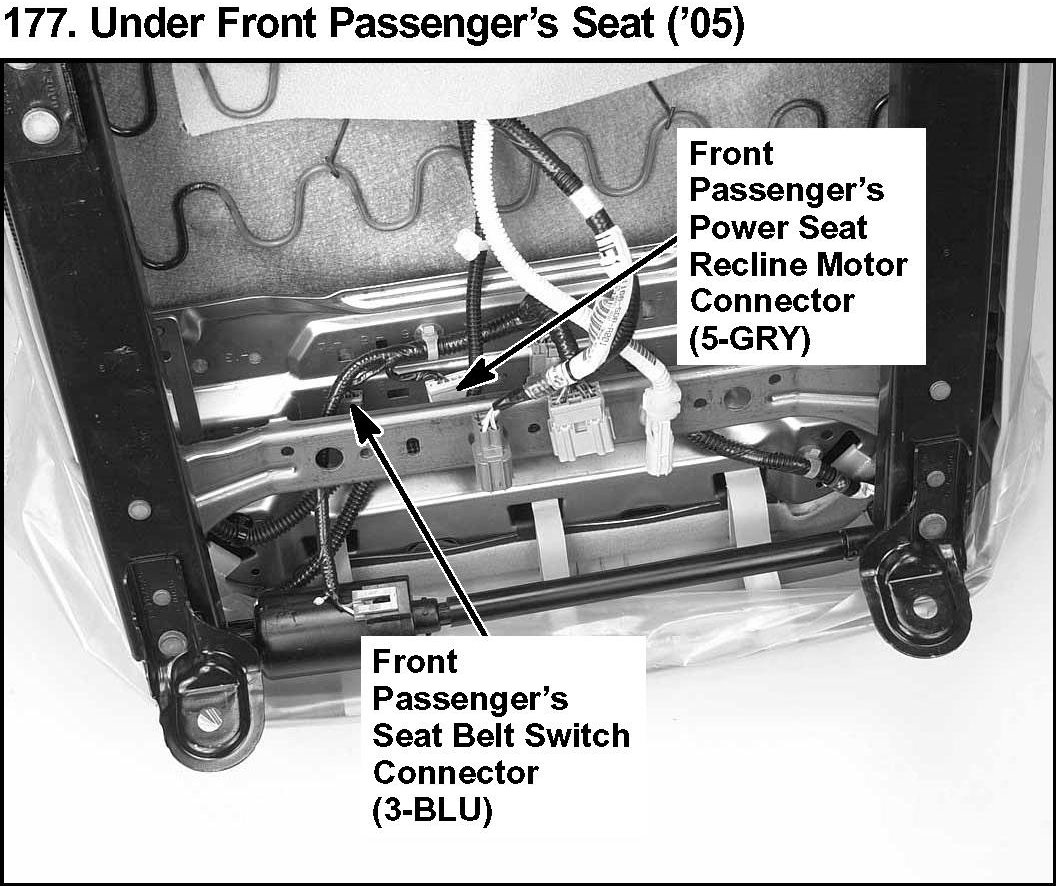

177. Under Front Passenger's Seat:
