Radio, Stereo, and Compact Disc: Description and Operation

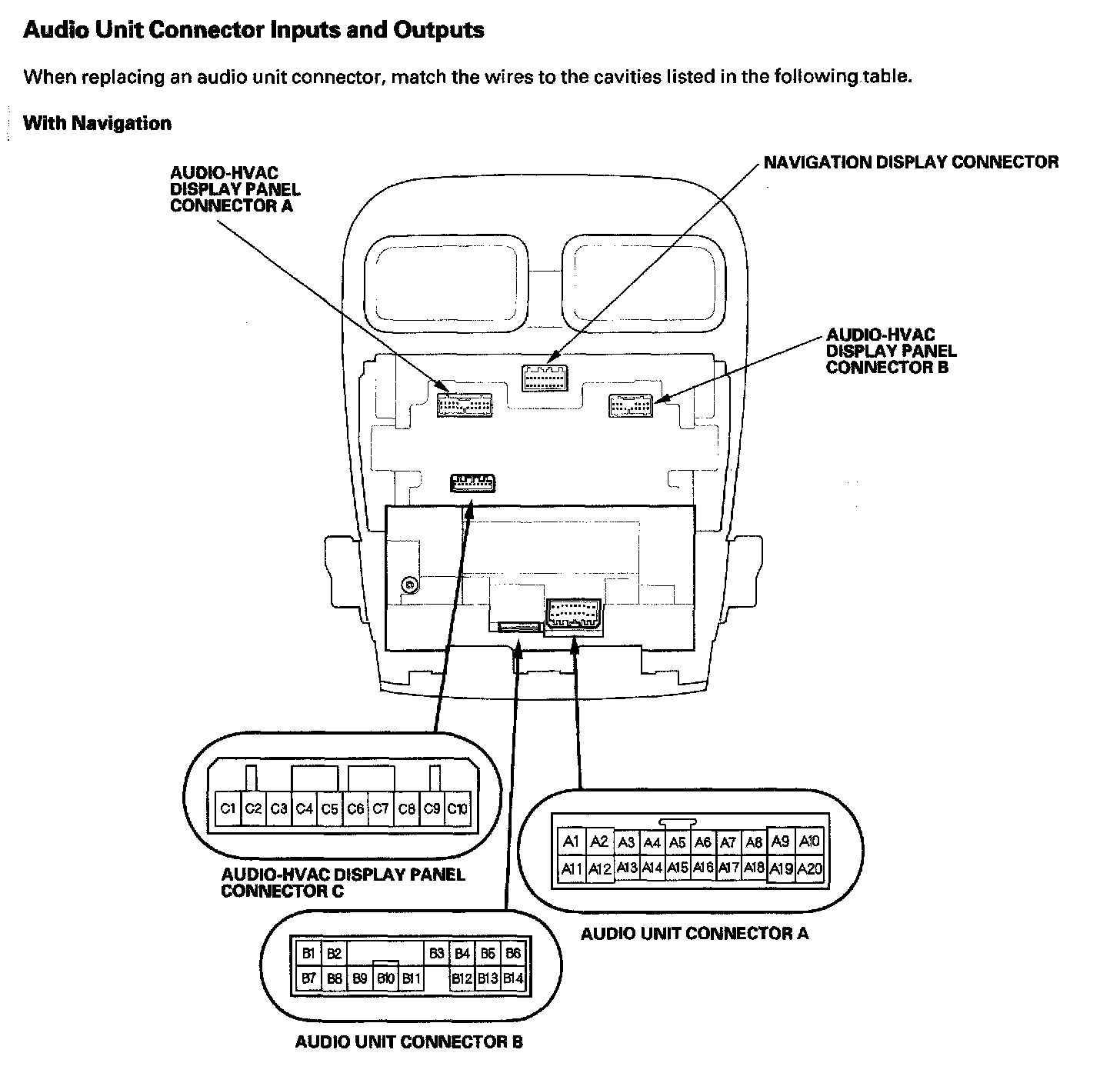

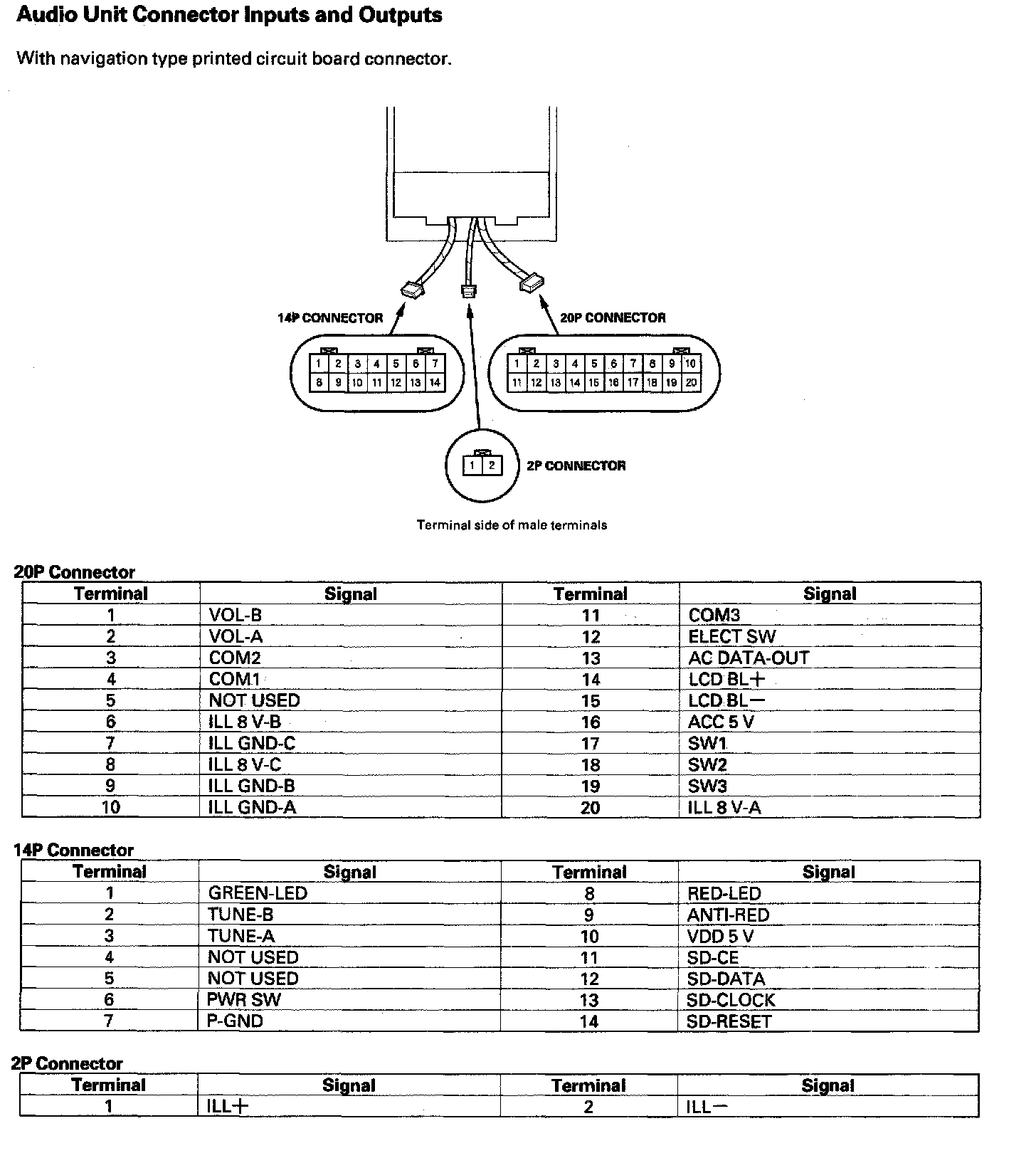

Audio Unit Connector Inputs And Outputs - With Navigation Part 1:

Audio Unit Connector Inputs And Outputs - With Navigation Part 2:

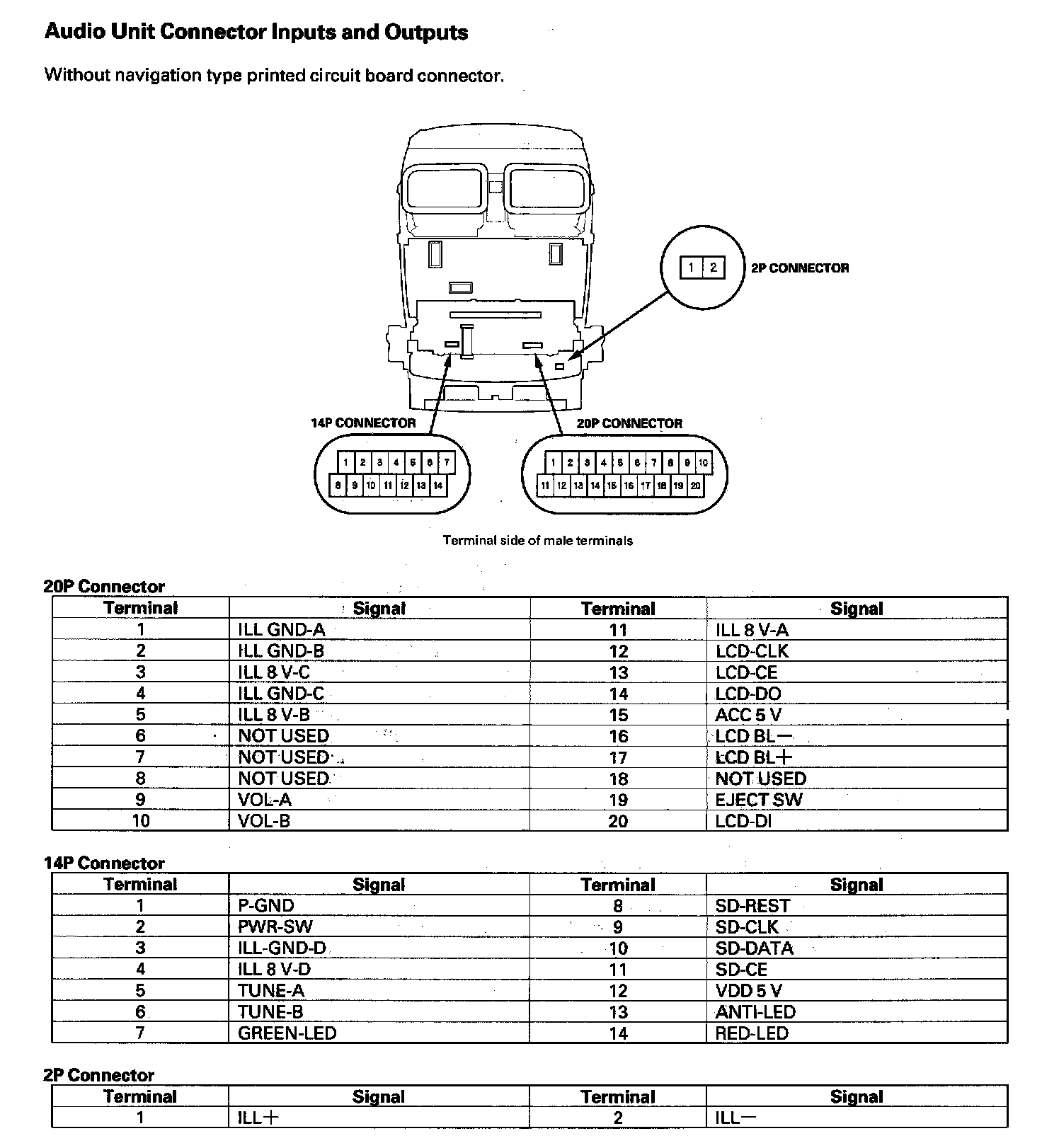

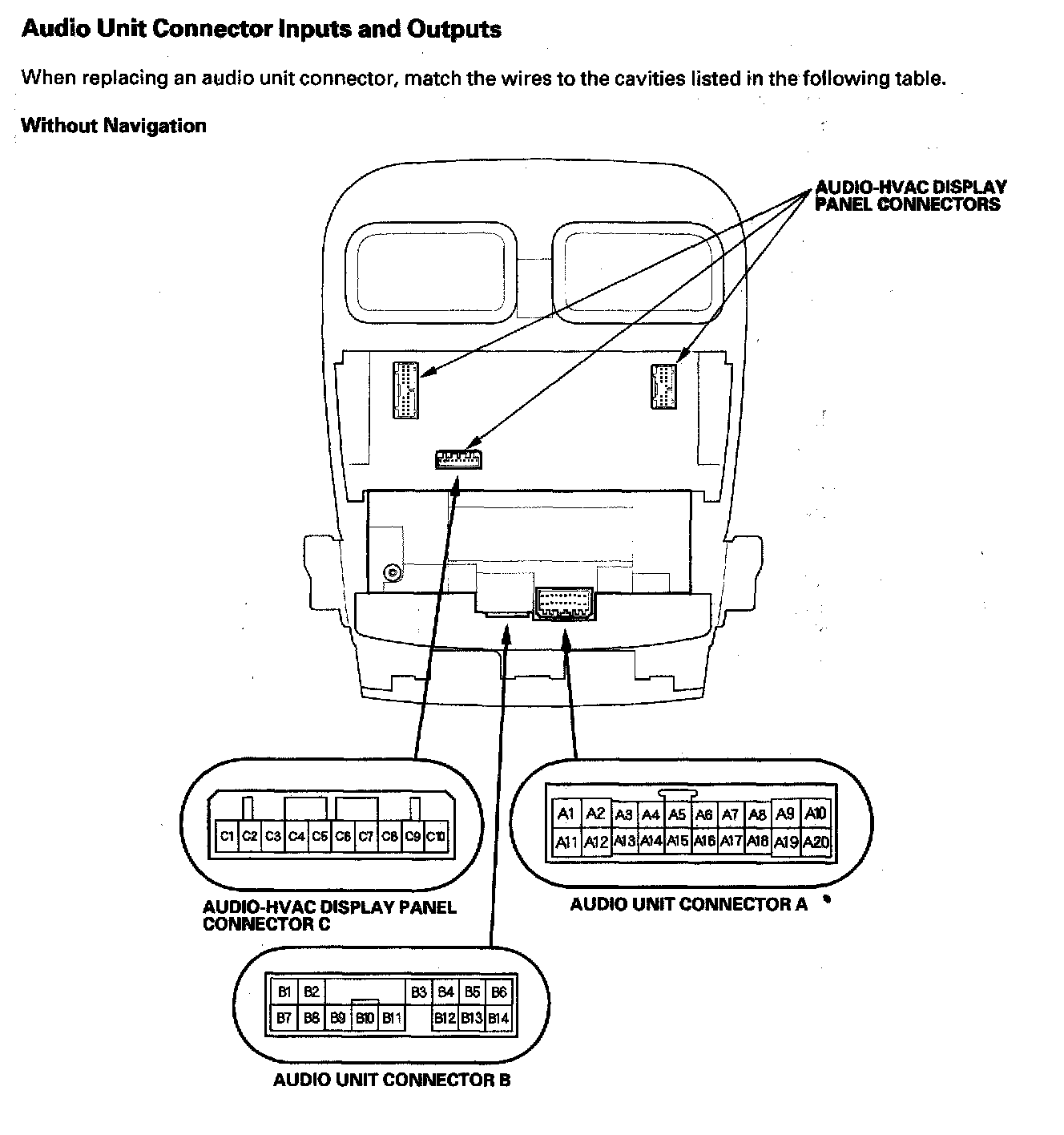

Audio Unit Connector Inputs And Outputs - Without Navigation Part 1:

Audio Unit Connector Inputs And Outputs - Without Navigation Part 2:

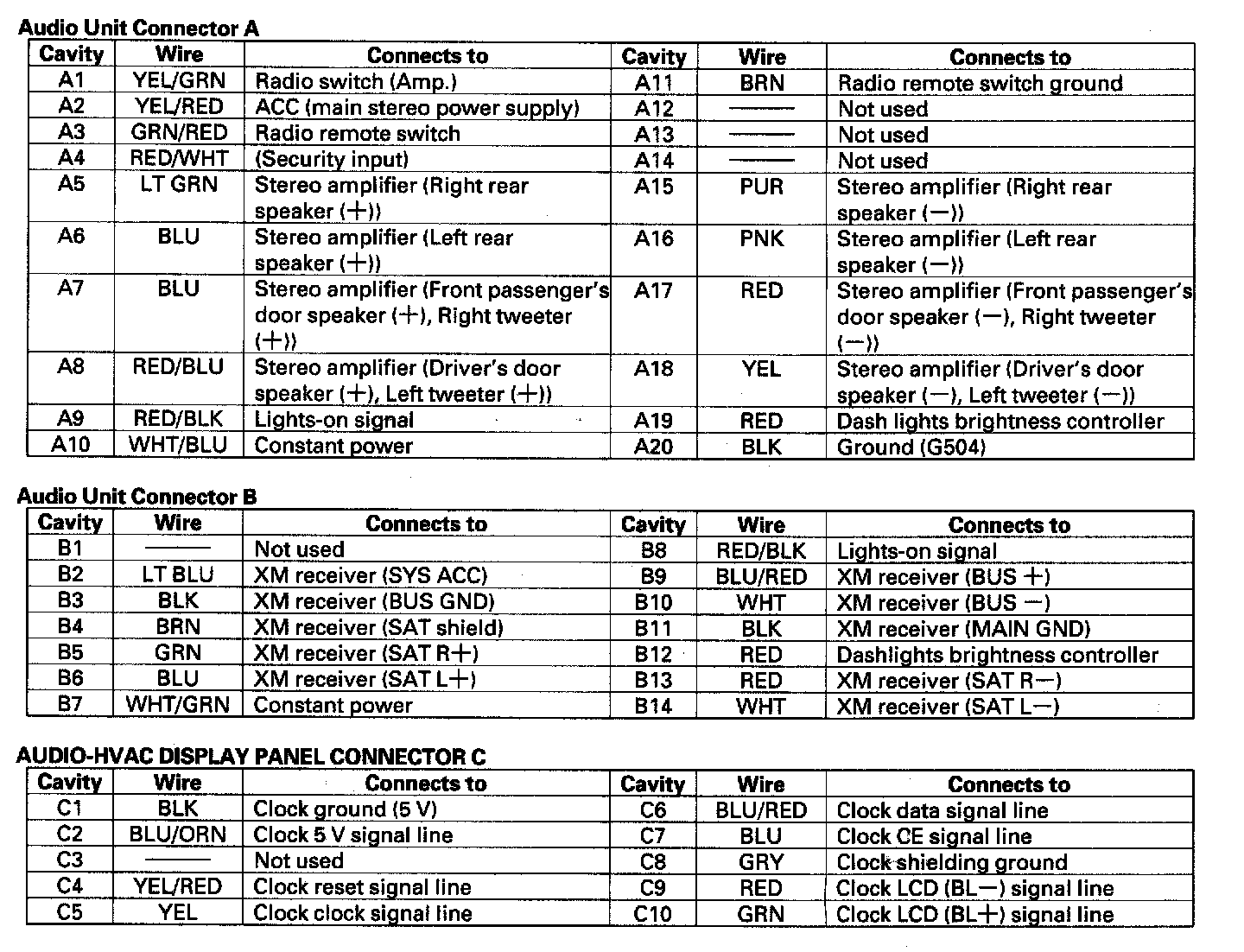

Audio Unit Connector Inputs And Outputs Part 1:

Audio Unit Connector Inputs And Outputs Part 2:

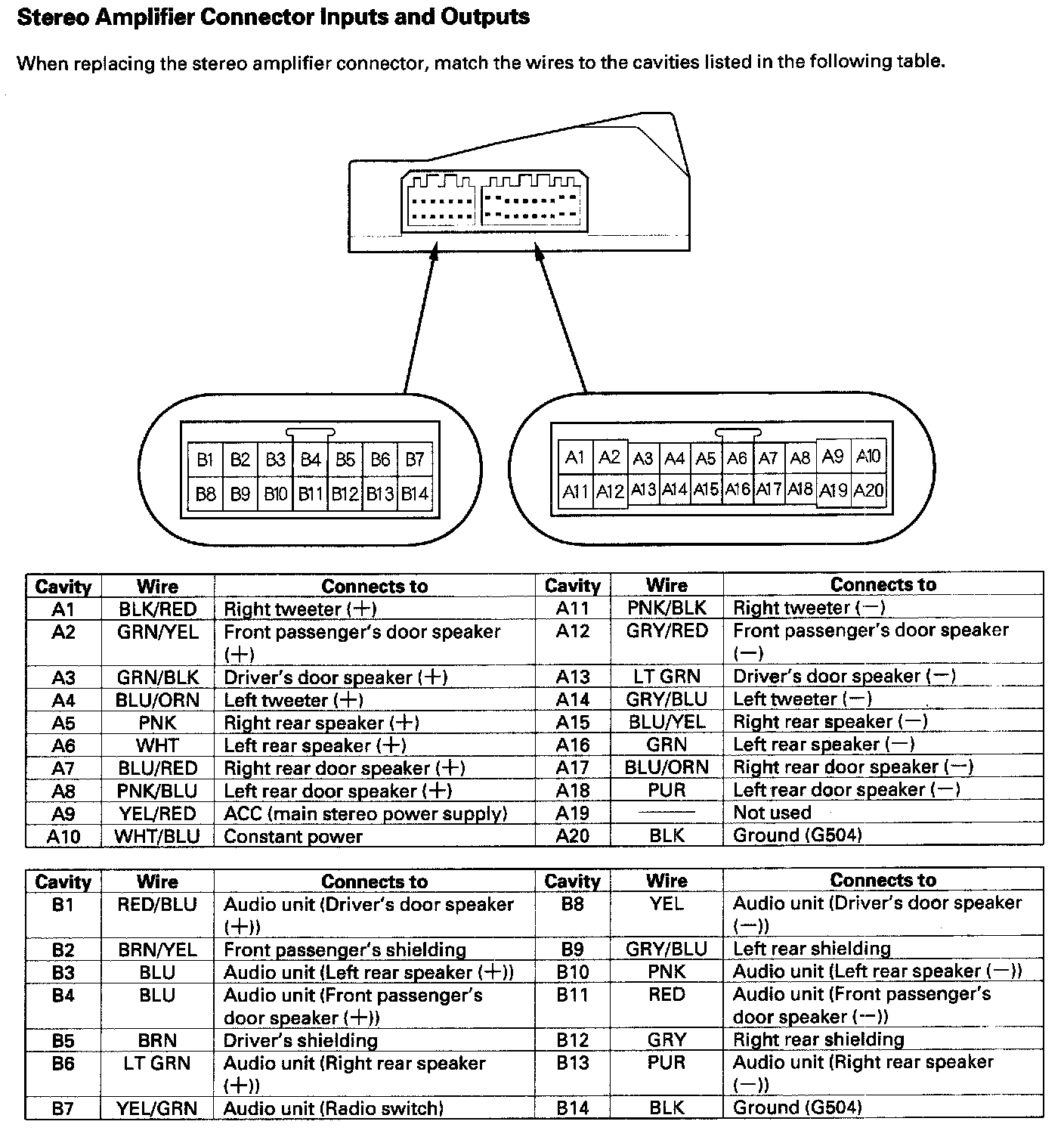

Stereo Amplifier Connector Inputs And Outputs:

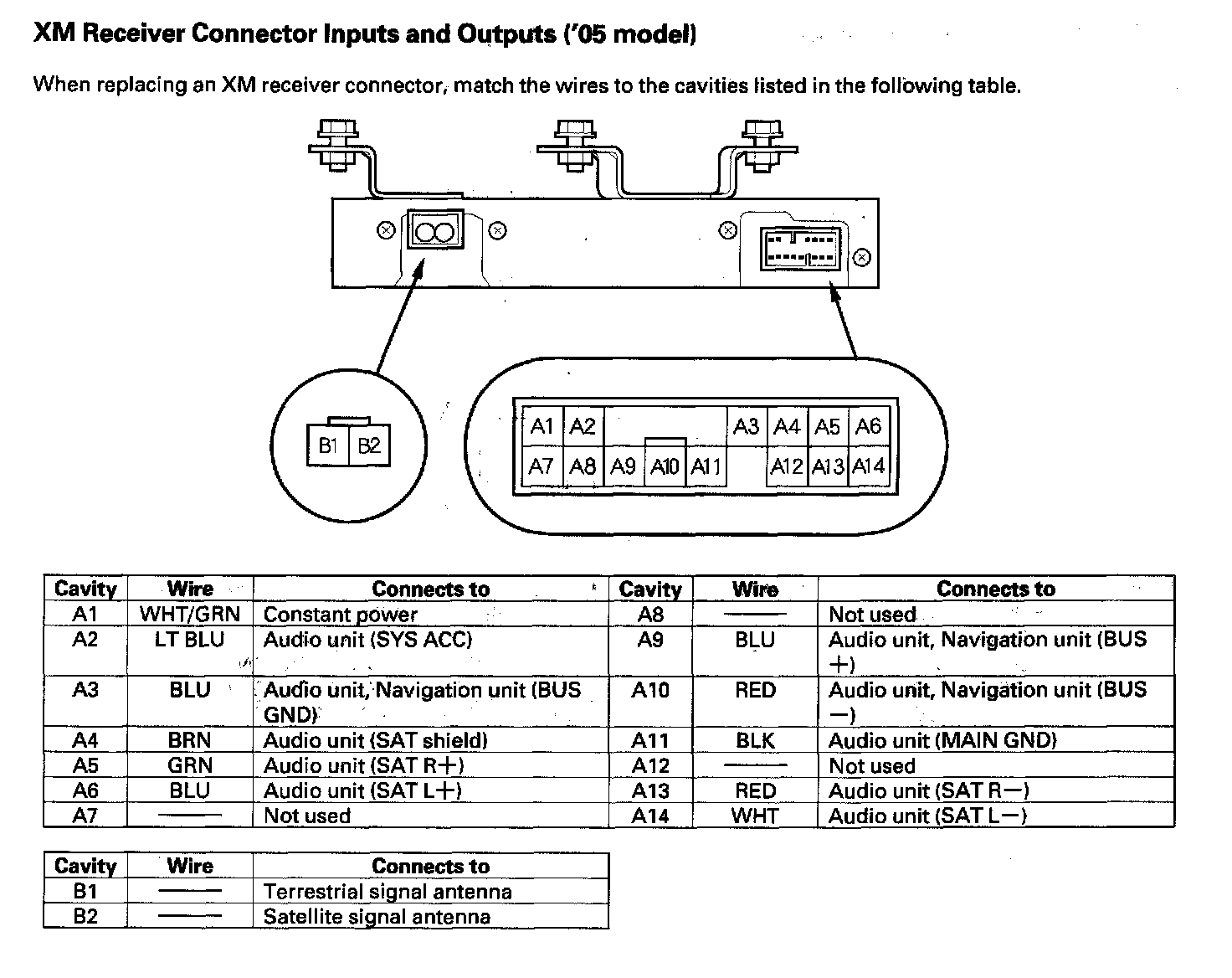

XM Receiver Connector Inputs And Outputs ('05 Model):

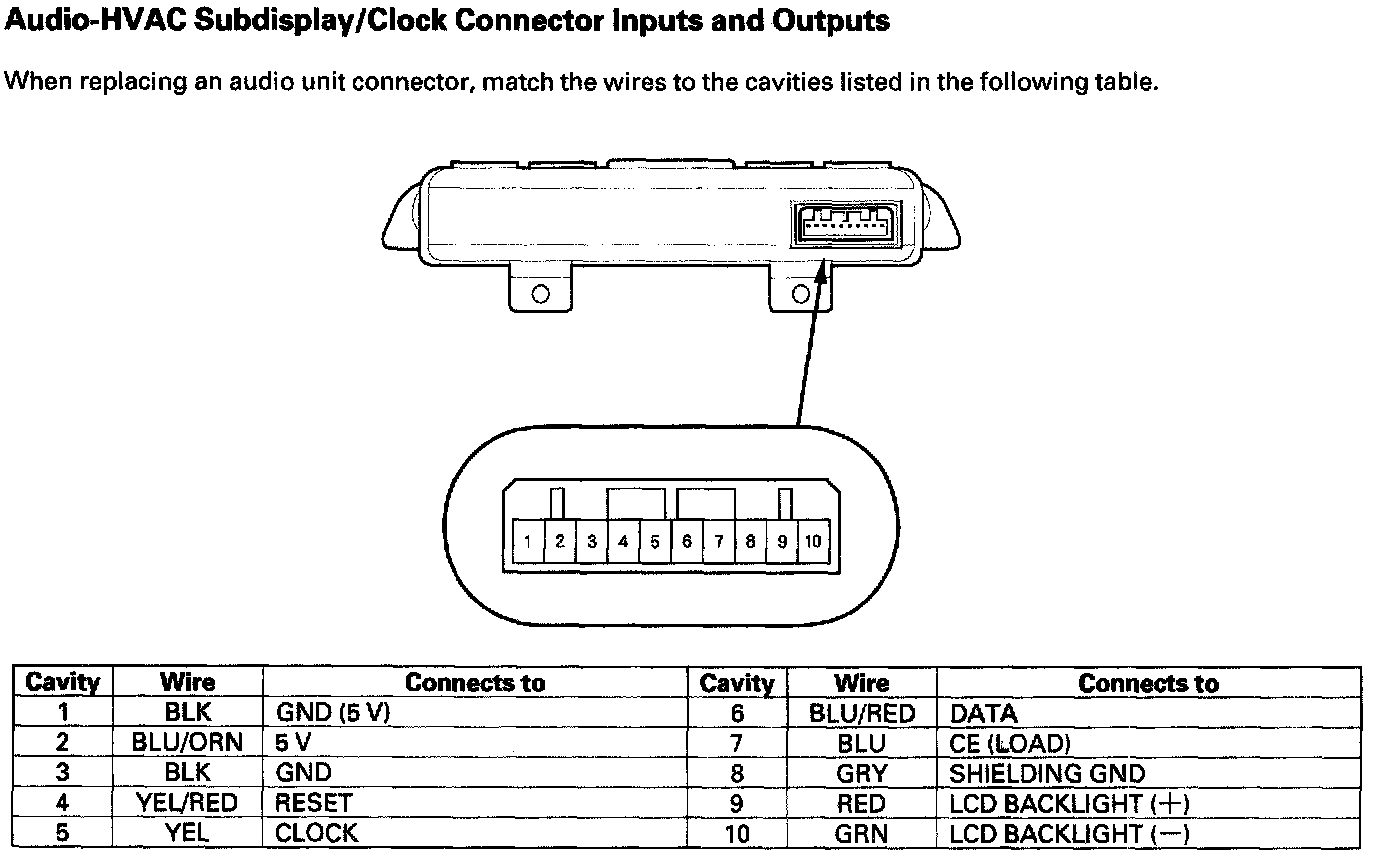

Audio-HVAC Subdisplay/Clock Connector Inputs And Outputs:
