Home
>>
Acura
>>
2005
>>
TL V6-3.2L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

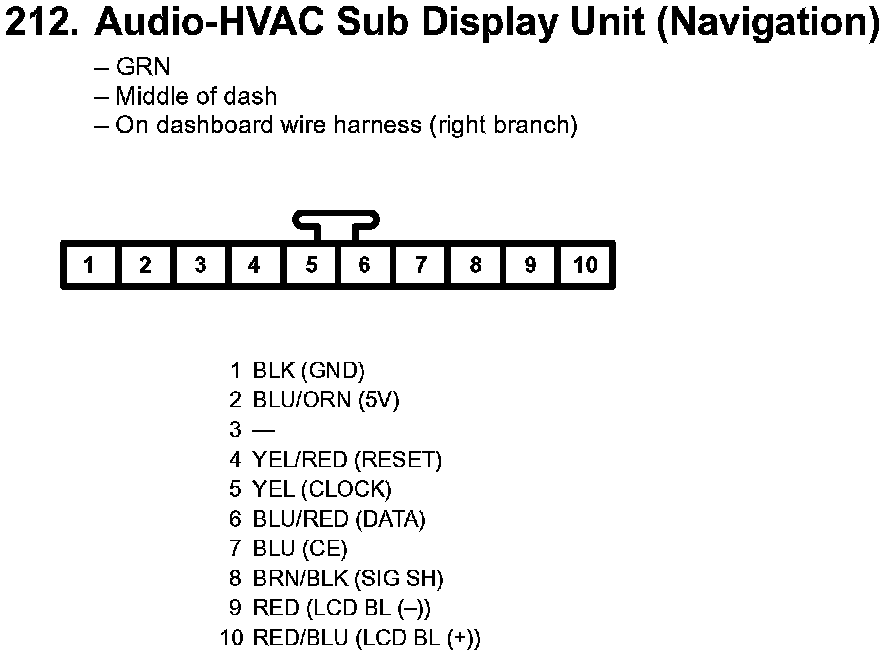

212. Audio-HVAC Sub Display Unit (Navigation):
