Driver's Mode Control Motor Replacement

Driver's Mode Control Motor Replacement

1. Remove the driver's dashboard under cover.

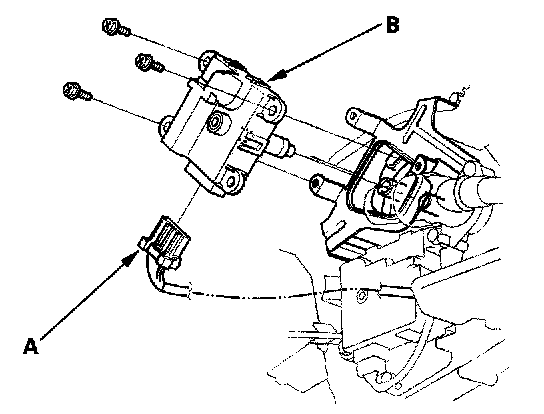

2. Disconnect the 10P connector (A) from the driver's mode control motor (B). Remove the self-tapping screws and the driver's mode control motor from the heater unit.
3. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
