Seat Temperature Element
Seat Temperature Element

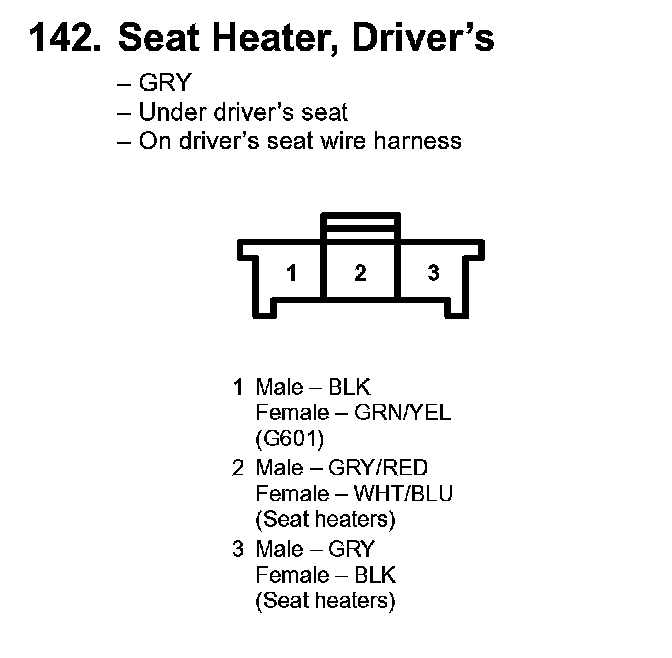

142. Seat Heater, Driver's:
143. Seat Heater, Front Passenger's:
