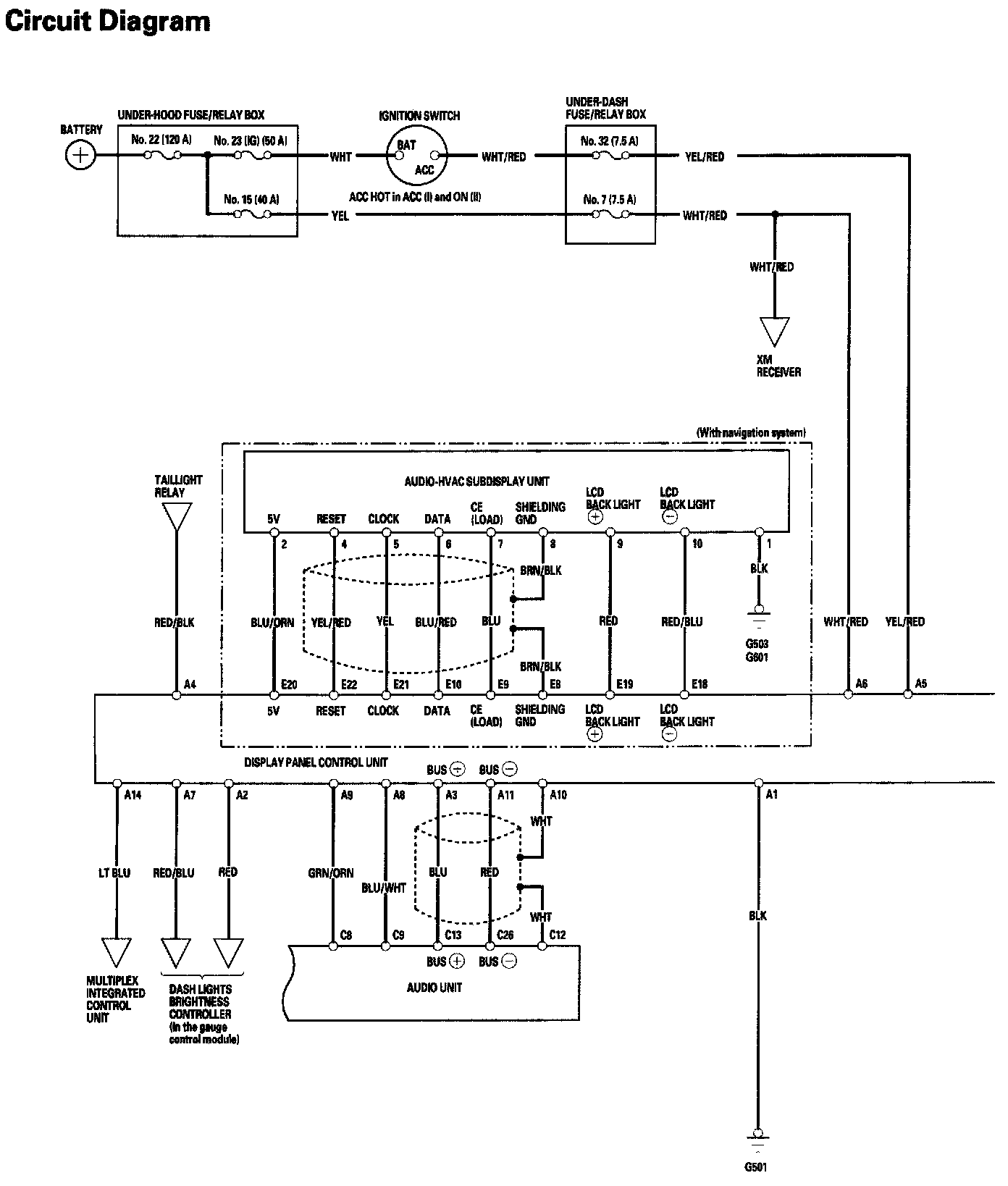

Display Panel Control System - Circuit Diagram Part 1:
Display Panel Control System - Circuit Diagram Part 2:
