Home
>>
Acura
>>
2005
>>
RSX L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Canister Purge Control Valve
>>
Diagrams
>>
Connector Views
Connector Views

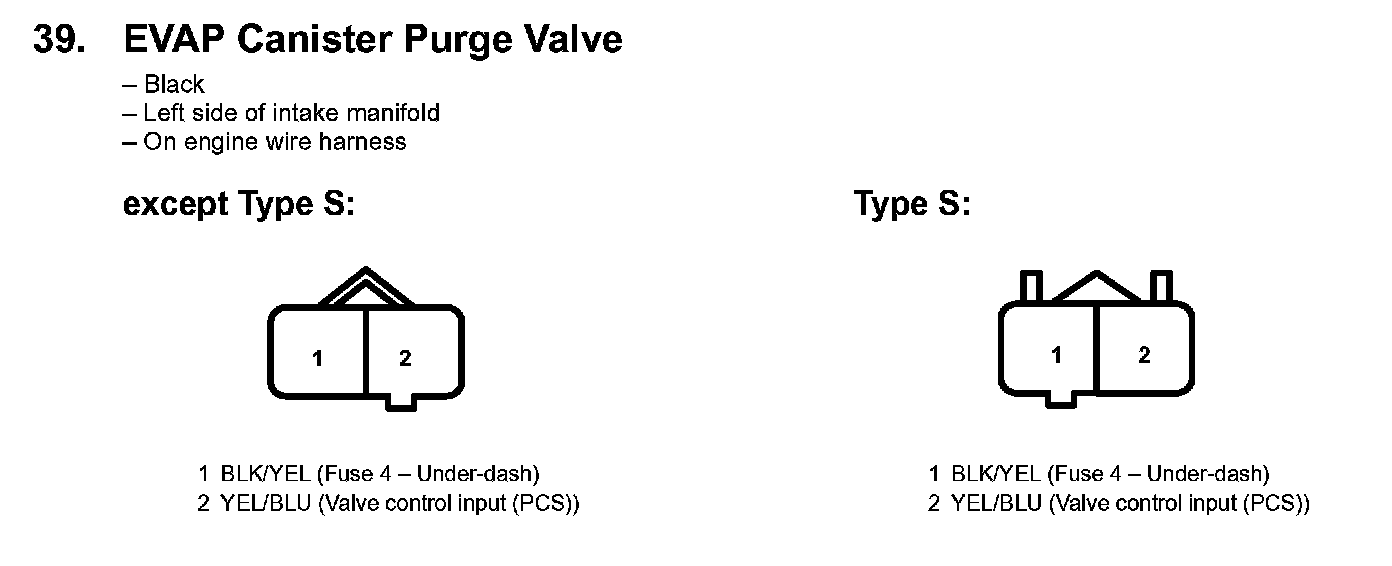

39. EVAP Canister Purge Valve:
